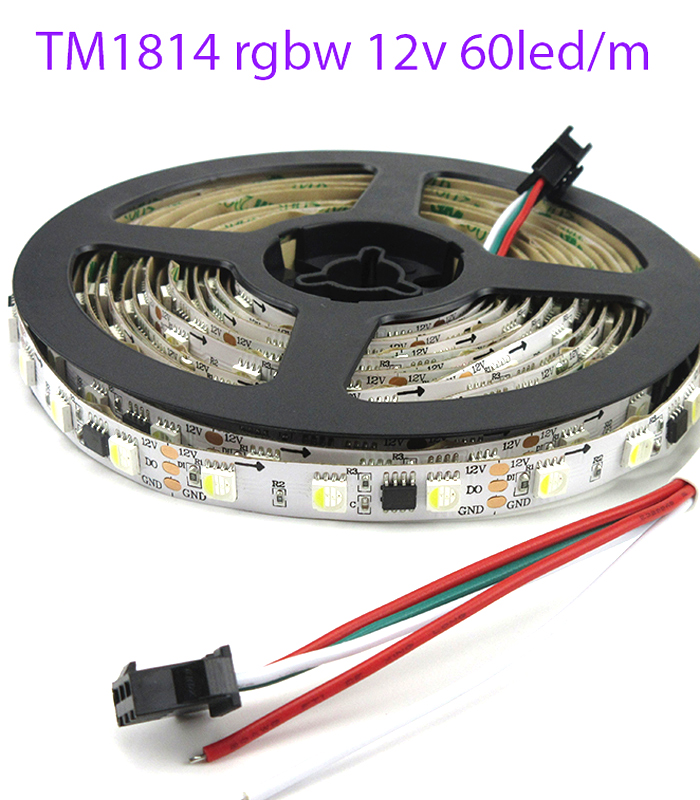

TM1814RGBW Led Strip
TM1814RGBW Led strip
Some features
1, TM1814 LED strip, Tube waterproof IP67, white PCB, R/G/B/W 4 color in 1LED.
2, 256 brightness display and 32-bit color display. Three pixel can have its own color and brightness. You can control them and set them to any color or animation you want.
3, Works great with ready-to-go library & example code for the Arduino UNO/Duemilanove/Diecimila, Flora/Micro/Leonardo, Trinket/Gemma, Arduino Due & Arduino Mega/ADK, FastLED library and Raspberry Pi.
4,Comes with 3pin JST-SM connectors and separated power/ground wires on both ends. Three LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
5,Covered with clear silicone weatherproof sheathing, which protects it very well and makes it easy to clean. It also comes with some silicone clips and screws for easy installation..
product features
1、product type: programmable TM1814 5050SMD 12V RGBW led Strip light
2、Led chip type:5050SMD
3、IC type:TM1814IC inside
4、Led quantity: 60led/m 300led/roll.
5、IC Quantity:20pcs
6、Voltage:DC12V
7、Power、19.2W/M
8、Emitting Color:RGBW
9、PCB width:10MM
Compare with the Regular RGB led strip, Some advantages
1、the regular RGB is 3in 1 led, the Ic is ws2811/ws2801/ws2812 or others.
But the RGBW is RGB+W 4in1 led.
2、the W can be warm white or white color.
3、with the Tm1814IC inside 4 channel.
Apply
1,Applicable for automobile and bicycle decoration, border or contour lighting
2,Widely used for home decoration use, hotels, clubs, shopping malls
3,Architectural decorative lighting, boutique atmosphere lighting
4,Extensively applied in Backlighting, concealed lighting, channel letter lighting
5,Emergency & security lighting, advertisement sign lighting
6,Decorative lights for holiday, event, show exhibition
7, support underwater lighting project

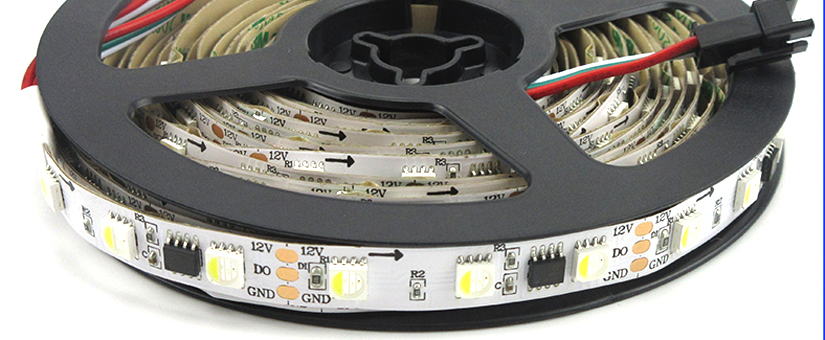

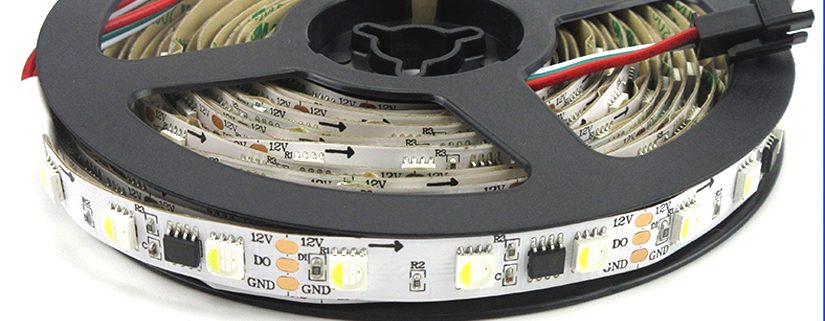

Some Picture show
Why Choose the TM1814RGBW,not the ws2811 addressable led strip ?
1、the TM1814RGBW is 4in1 led strip,the ws2811 is just RGB in one led.
2、the TM1814 and ws2811 are also DC12V, but the TM1814 with Resume break from point Function.
3、The TM1814 RGBW is RGB+W. the Ws2811RGB is just RGB.
