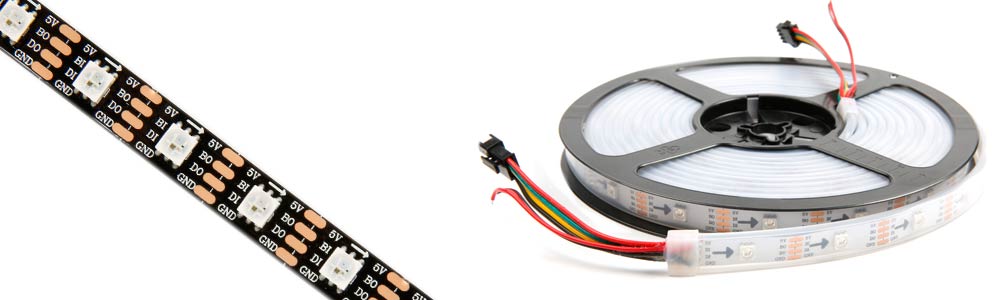

WS2813 Addressable LED Strip Light

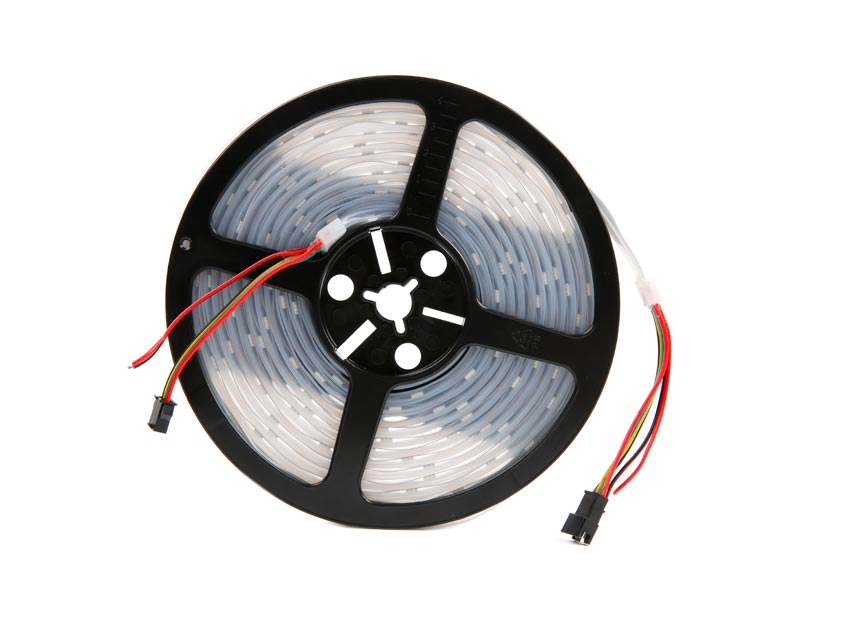

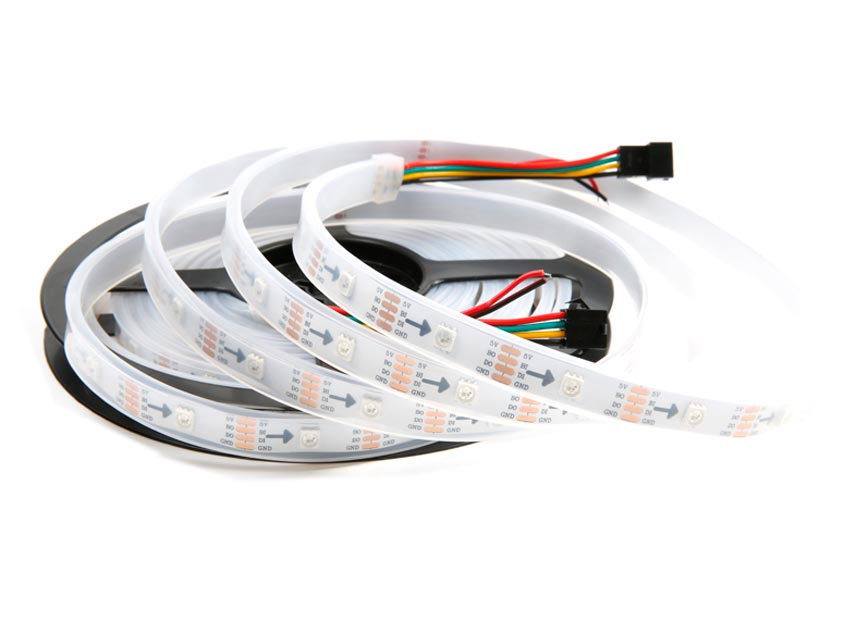

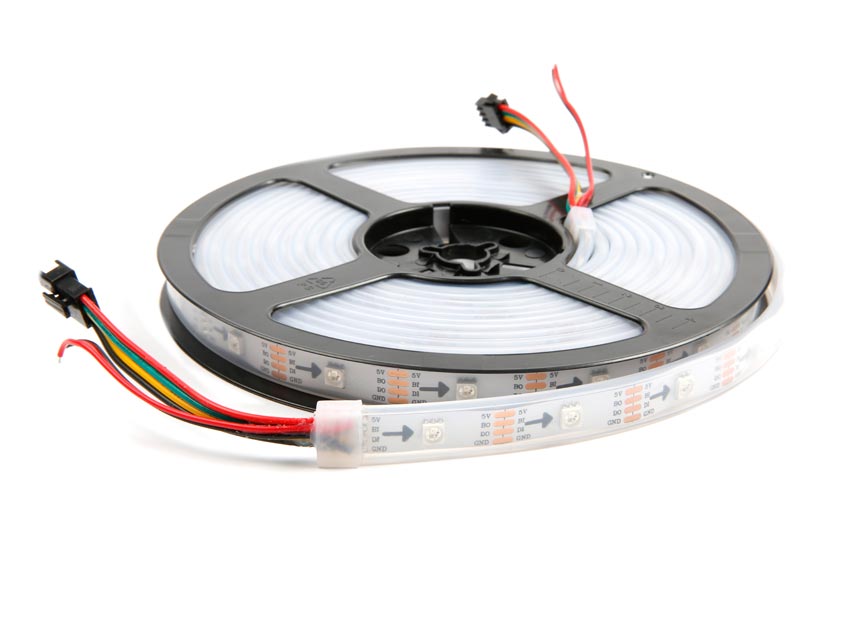

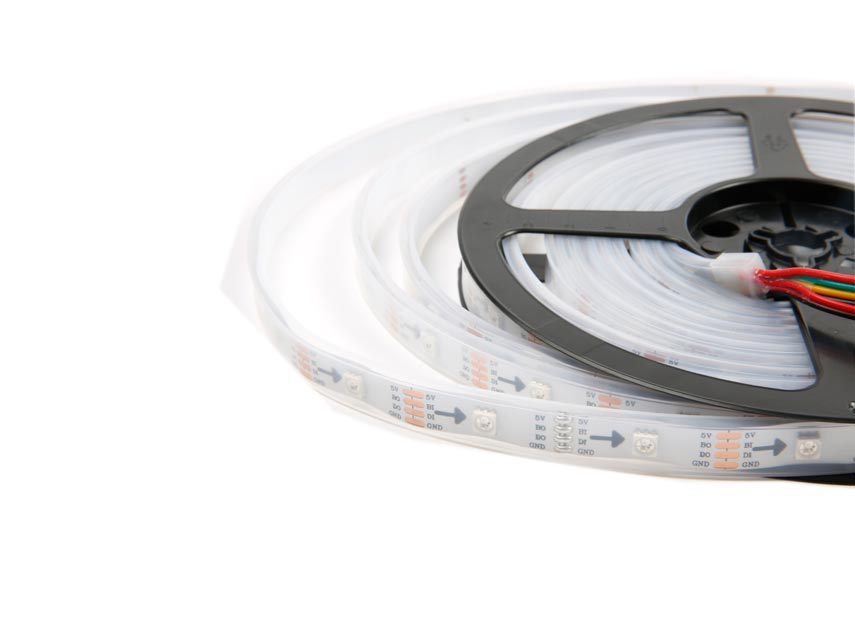

WS2813B IP67 Silicone Tube Rgb LED Strip
-
WS2813control ICs, each LED is independently addressable (60 individually addressable LEDs in 1 meter), opening up entirely new lighting possibilities.
WS2813 led have 2 data signal ,one is DI,one is BI,so when you use those led chip to make led strip , one led broken will not affect another led unless two consecutive led is broken , so WS2813 led make digital led project is more reliable than before.
Share This Product
Product Details
Features
Features:
- 1. ws2813 led strip,breakpoint continue,one led broken,no affect other the behind led work.2. One WS2813 IC control ONE LED Chip; Users can cut the ribbon tape every 1 LEDs3. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;
4. With 4pin LED lamps for the digital strip
5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.
This product can achieve effects and animations by controller , for example RGB seven colors gradual change,jumping change, Fading , flashing, strobing , color chasing, color sliding, Fading, Dimming mode etc.
6. This is the highest resolution for the moment
7. Controller, Power supply are available
8. For WS2813 IC, we have DC5V; 30/60/96/144 leds per meter. Great choice.
9. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement decorative lighting and so on.
10. Low voltage DC power supply safety, Convenience.
Dimension
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Waterproof level
Items for different waterproof:
IP20: Non waterproof, 3M adhensive backside.
IP65: Silica gel drop on the front side, 3M tape backside.
IP67: Silicone tube protection.
IP68:Silicone tube and drop in silica gel
Our service
1.Reply your inquiry in 24 hours
2.Experienced staffs answer all your questions in fluent English
3.Customized design is available.OEM&ODM are welcomed
4.Exclusive and unique solution can provide to customer by our well trained and professional technicians
5.Special discount and protection of sales area provided to our distributor
ompetitive position.
Contact Us
NORMAL ADDRESSABLE LED STRIP LIGHT
WS2812B LED STRIP
- WS2812B LED Strip use the FPCB (flexible printed circuit board) to be assembly circuit boards, use SMD LED lights and components to be assembled, so that the thickness of the product only just like, Ocuppy a small space, and can be arbitrarily cut, FPC is soft material, can random winding, and wound freely movable in three-dimensional space without breaking, suitable for irregular place and narrow space of places to install, but also as any possible bending, suitable for advertising, decorative lighting, any combination of the kinds of patterns,LED Chip is built-in IC, then the components is less , pixels can be high, can make attractive appearance, and so on.
- IC is designed with one data line, two power lines, 256 gray scale, high brightness, fast data transfer, fast screen refresh, etc., with the controller, you can achieve monochrome, gradient, water , horse racing, text, numbers, chase, English, pictures, animations, video, any effection, and so on.
- Products using DC5V voltage to power supply, high safety factor, using the import led chip to be the light source , high brightness, light fade is small, maintenance-free, long lifespan , energy-saving and environmental protection, based on the above characteristics,More and more peopel choose led strip as lighting ,decoration product.
Share This Product
Product Details
Features
- Adopt international leading manufacturer ’s chips high brightness width angle , color consistency, and stable performance.
- Each lamp beads form a loop, can be arbitrarily cut according to the needs of the length of the loop, without damaging other parts Convenient to Fix and install, flexible cutting operation make the construction simple, ultra-thin design, low temperature light source, make the selection for the auxiliary material more flexible on installation Energy saving, high brightness, low heat, low energy consumption,Clean, and beautiful.
- Use DC5V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.
Dimension
Specifications
1 meter led strip Specifications
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
