5050 rgbw led strip

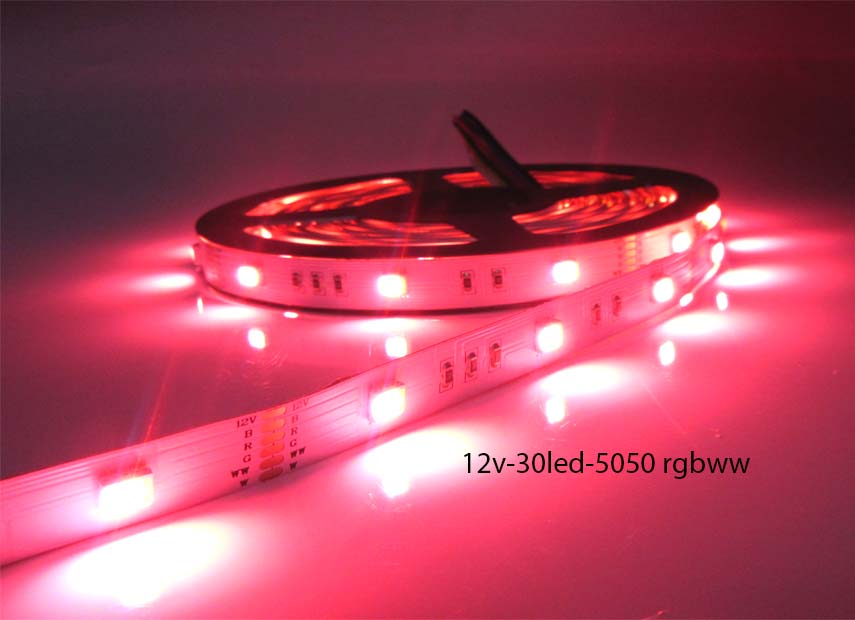

5050  Rgbww LED Strip Light

Rgbww LED Strip Light

DC12V 5050 SMD RGBWW can replace 5050 RGB Rgbw Cct led strip light

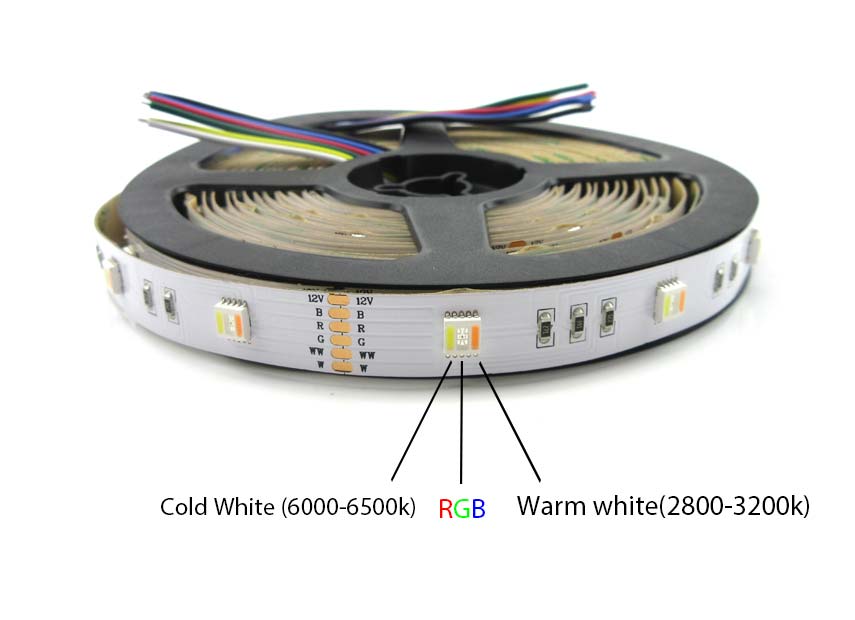

1,RGBWW = RGB + Cold White (6000-6500k)+Warm white(2800-3200k)

2, Superbright 5050 RGBWW LED Strip Light, high intensity and reliability,one 5050 led have 5 color,
rgb and white and wram white!
3, Continuous length, packed with 5 meter normally!
4, Back with a self-adhesive.

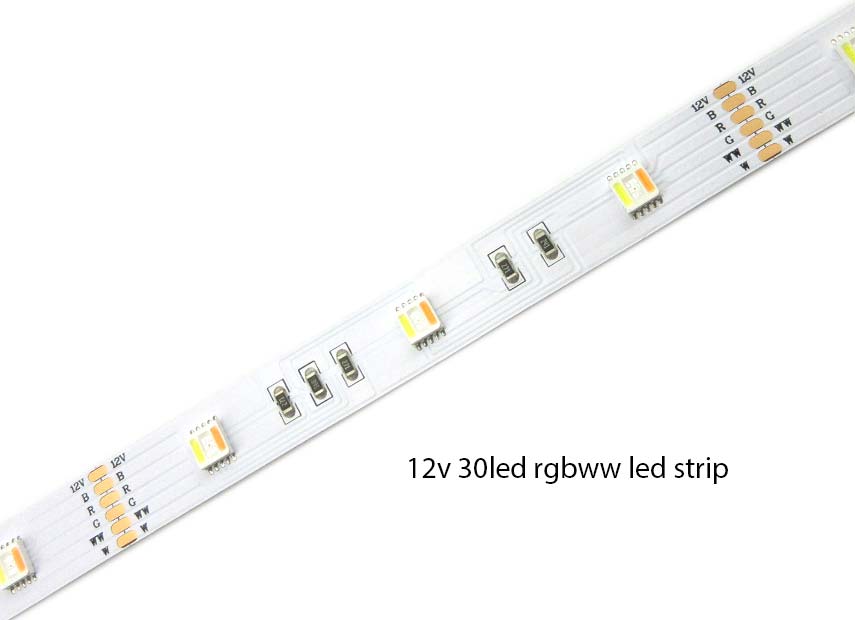

5,Cuttable every 3 LEDs along the cutting marks for 12v , according to your requirement.
6, Long life span 500,000+ hours
7, Flexible ribbon for curving around bends
8, Completely smooth and even light spread, solving the uneven luminous problem
9,Ultra-bright but running at low temperature
Share This Product

Product Details

Features

Features:

1,One 5050 led have rgb,warm white,white,5 color in one led !

2.  Width: 12mm, 5m/reel;

3.  Viewing angle : 120 degrees;

4.  DC12V:Cuttable at 3 leds; DC12V:Cuttable at 3 leds

5.  Color available:Four color;

6.  Assembled with 300 pcs SMD5050 / 5 meter packing;

7.  Long life: 50,000 hours;

8.  Board material: FPC;

9.  Input: DC 12V

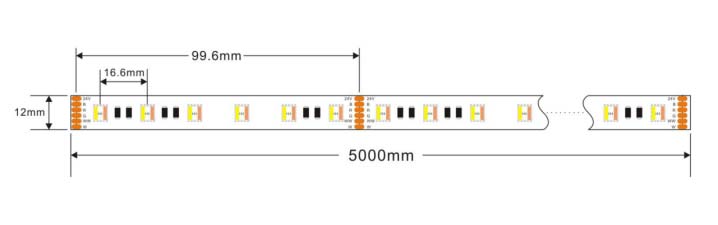

Dimension

5050 rgbww LED Strip light

Specifications

1 meter Rgbww led strip Specifications

Item Name 5050 rgbww led strip
 Voltage DC24V
 Color RGBWW
 Light source SMD 5050
 led QTY 60leds/m
 Power 16.8W/M
 Size 5000*12*3mm
Package 5 meter one roll
Width 12mm
Similar RGBW led strip

30/60/84/96/pcs/m RGBW led strip 5050 Specifications

5050 rgbw led striprgbw 5050 led strip

Applications

application

  • City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
  • Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
  • establishments ceiling cavity design)
  • Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
  • Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
  • Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
  • Please read the specifications and precautions carefully before installation
  • Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
  • Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
  • This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
  • correct or not , so that avoid the product been burned
  • This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
