NEW ULTRA SMALL SIZE LED DIODE
FLIM TOP 2020 PACKAGE LED DIODE
1.Top SMD internal integrated high quality external control line serial cascade constant current IC;
2.control circuit and the RGB chip in EC2020 components, to form a complete control of pixel, color
mixing uniformity and consistency;
3.Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
4.The built-in power on reset and reset circuit, the power does not work;
5.Gray level adjusting circuit (256 level gray scale adjustable);
6.Red drive special treatment, color balance;
7.Line data transmission;
8.Plastic forward strengthening technology, the transmission distance between two points over 10M;
9.Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per second, the number of cascades is not less than 1024 points.
Share This Product
Product Details
Features

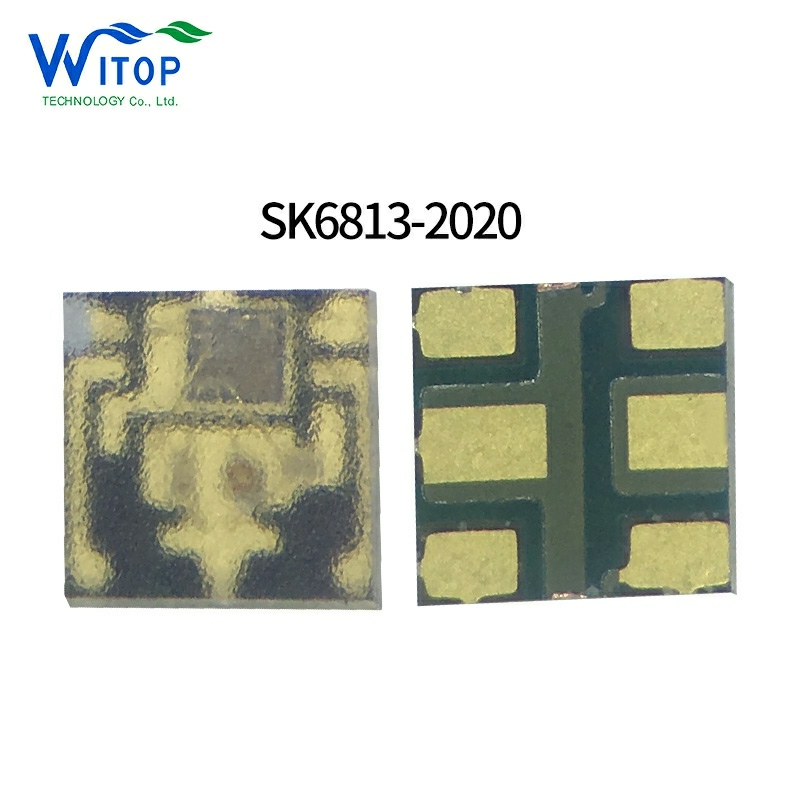

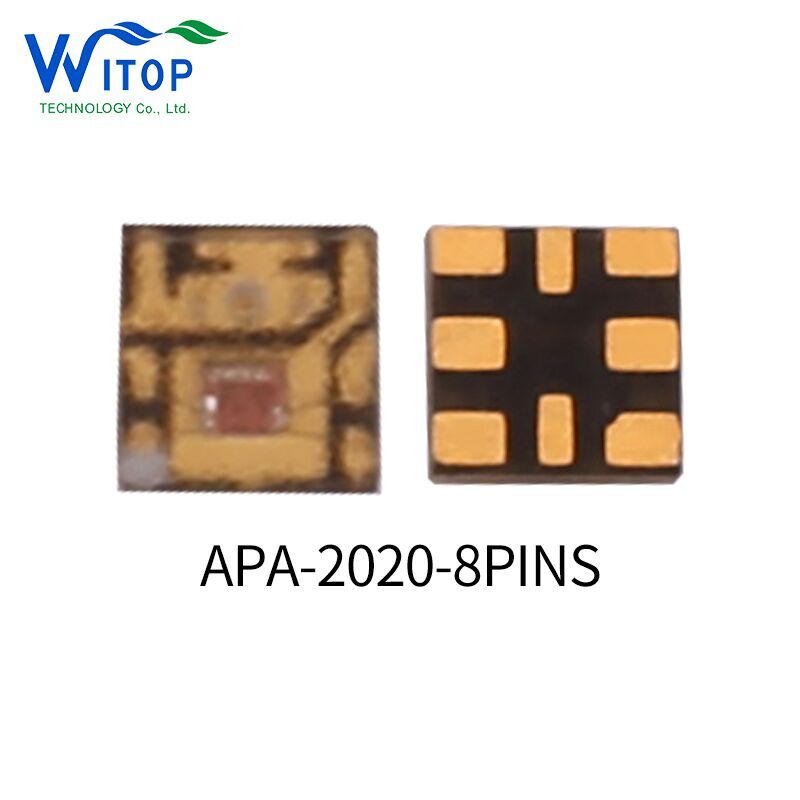

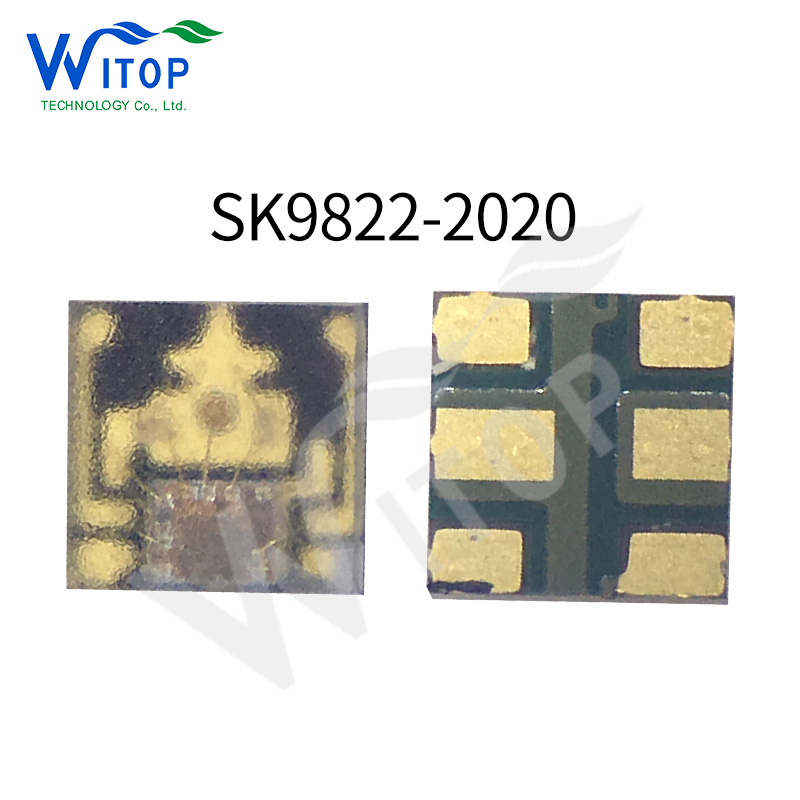

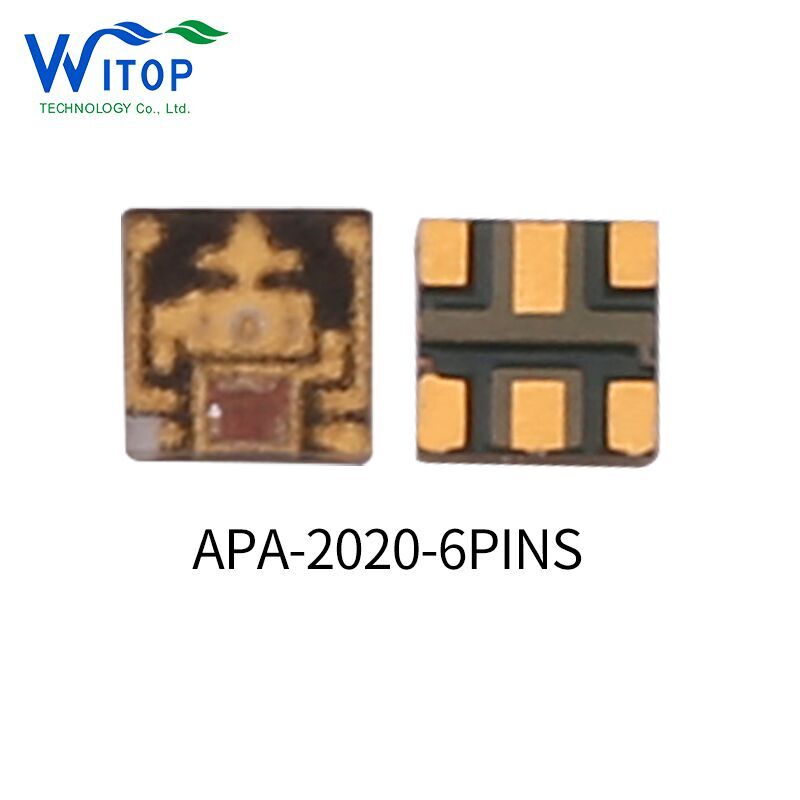

- Film Top SMD2020 Package we have:APA102/SK9822/SK9816/SK6812/SK6813/WS2812
- The ultra size is 2*2mm

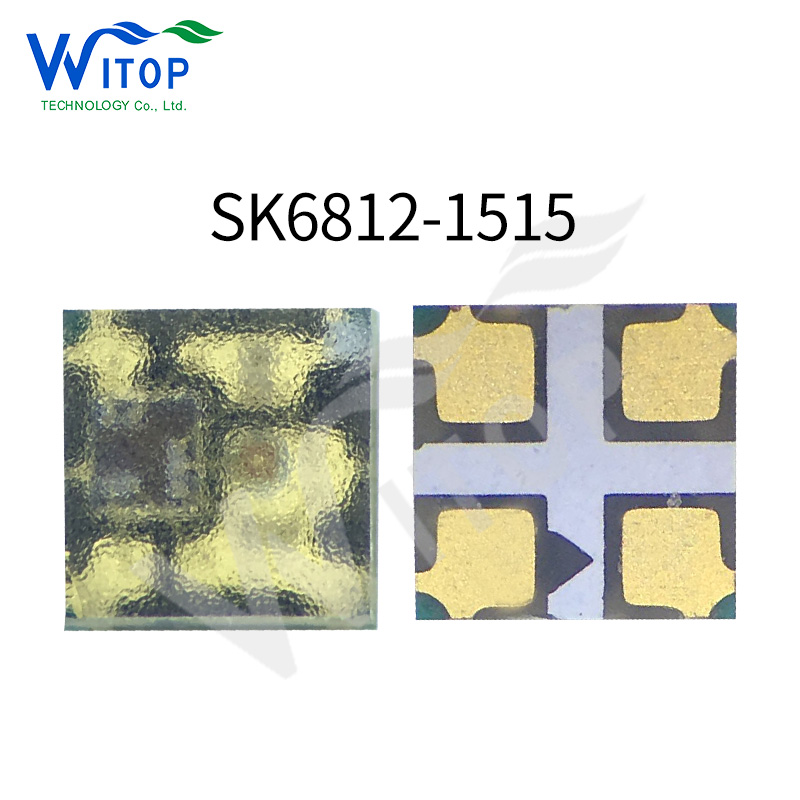

- Other size we have:SMD1515/SMD1010,more details pls contact us

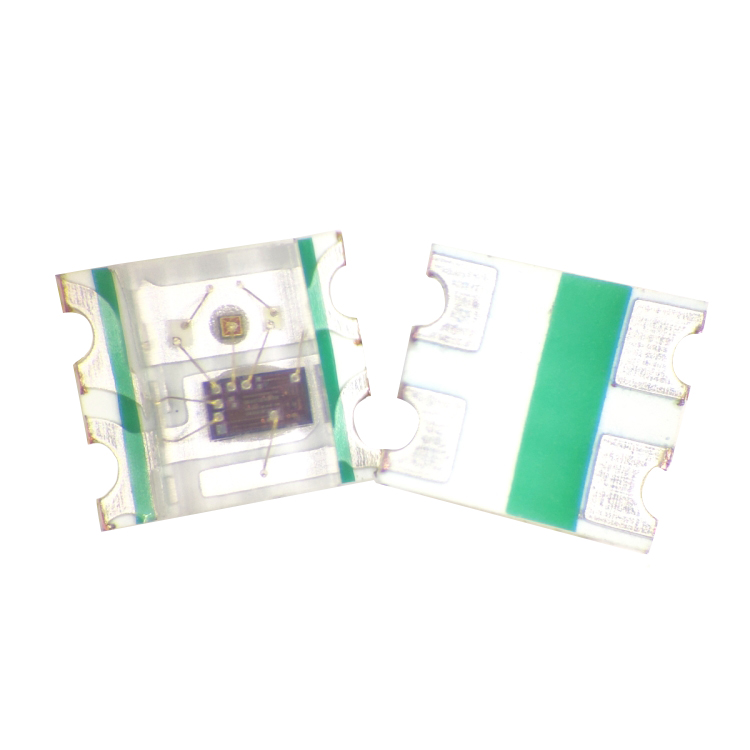

WS2812-2020
SK6813-1515
Specifications

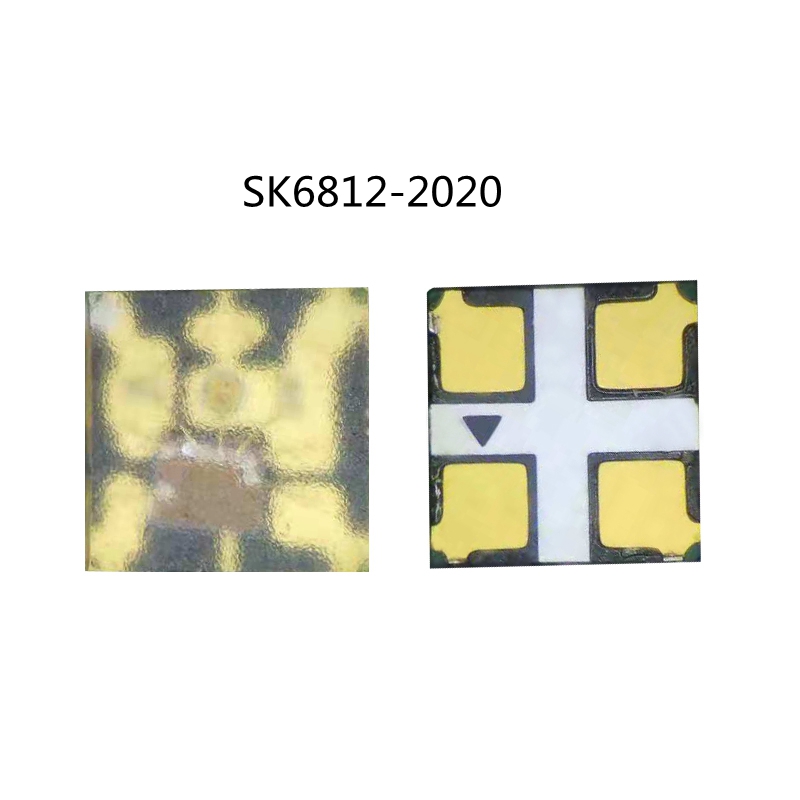

Specifications-SK6812-2020
| Model | SK6812-2020 | Led Type | SMD2020 |
| Led Color | RGB | IC Type | SK6812 |
| Voltage | 5V | Current | 5mA |
| Power | 0.1W | Luminous intensity | R:40-60mcd,G:100-130mcd,B:30-50mcd |
| Other model | APA102-2020/SK9822/SK6813/SK9816/WS2812 | Package | 5000pcs/reel |
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
