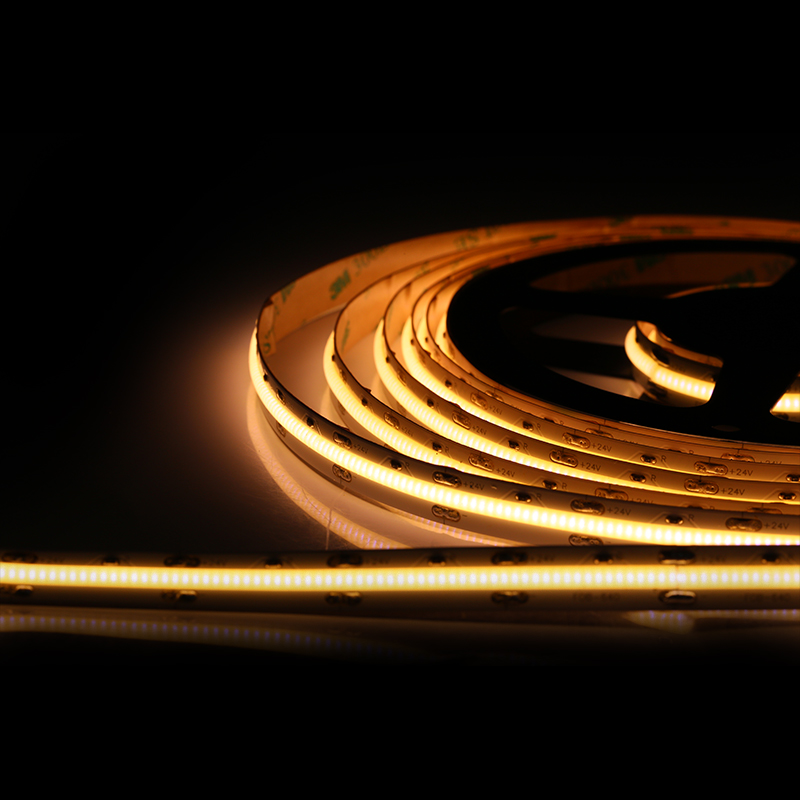

FLEXIBLE COB LED STRIP LIGHT
COB LED STRIP
- Fluorescent glue material with COB package technology,without any led supporter,only Led chip emitting,and better heat-resistance PCB
- High density and high brightness and worklife is over 2.5 ten thousand hours.
- 180 degrees emitting and better lighting effect.

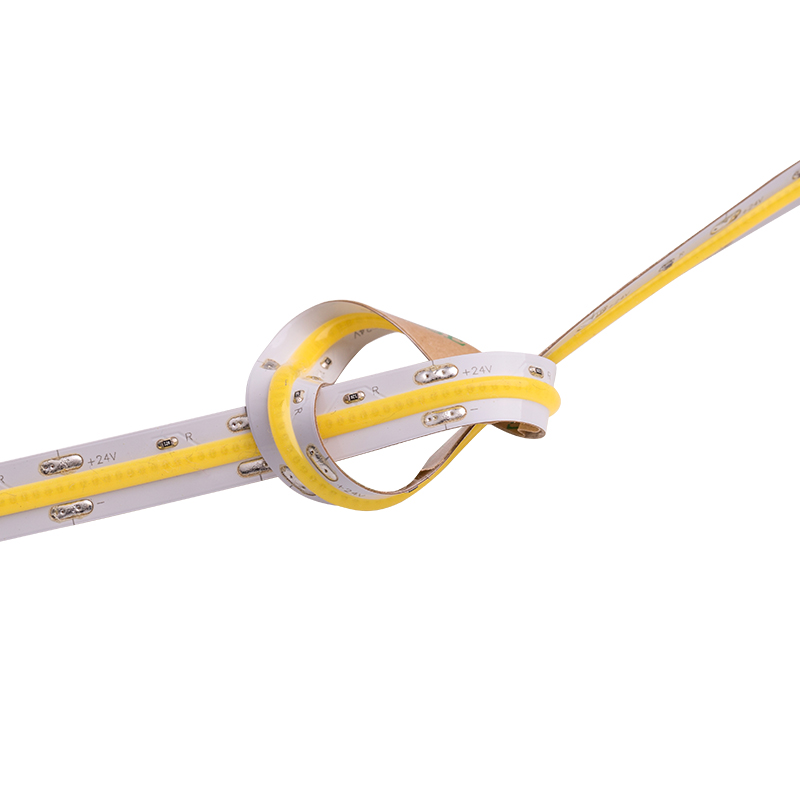

- More flexible and easy to install with 3M glue tape
Share This Product
Product Details
Features
- Fluorescent glue material with COB package technology,without any led supporter,only Led chip emitting,and better heat-resistance PCB
- High density and high brightness and worklife is over 2.5 ten thousand hours.
- 180 degrees emitting and better lighting effect.
- More flexible and easy to install with 3M glue tape

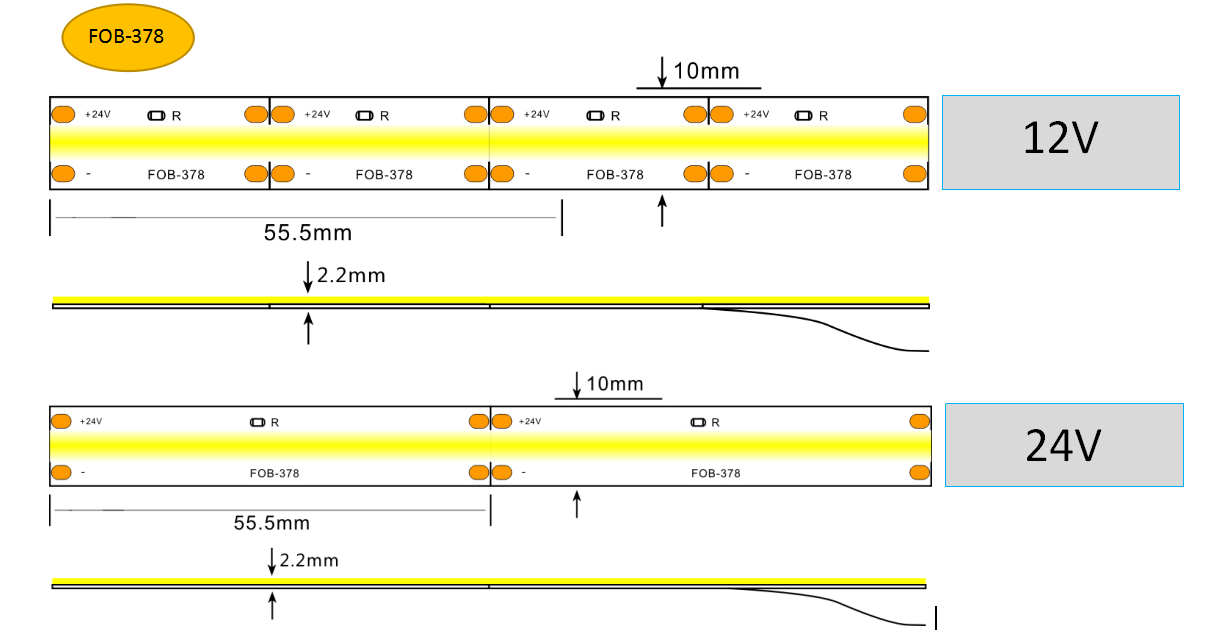

Dimension
Specifications
1 meter led strip Specifications
| Model-378LED/M | Colour | LEDs QTY. | LEDs Type | Beam angle(°) | Voltage
(DC) |
RA | Power(W/M) | LM/W | LM | Min.cut/mm |
| COB-D378 | 2700K | 378 | COB | 180° | 12V/
24V |
≥80
≥90 |
14W | 80 | 1450-1500lm | 55.5 |
| COB-D378 | 3000K | 14W | 90 | 1600-1700lm | 55.5 | |||||
| COB-D378 | 4000K | 14W | 100 | 1800-1900lm | 55.5 | |||||
| COB-D378 | 6000K | 14W | 95 | 1650-1750lm | 55.5 | |||||
| COB-D378 | R | 14W | 12 | 210-220lm | 55.5 | |||||
| COB-D378 | G | 14W | 80 | 1400-1500lm | 55.5 | |||||
| COB-D378 | B | 14W | 20 | 350-370lm | 55.5 |
| Model-504LED/M | Colour | LEDsQTY. | LEDs Type | Beam angle(°) | Voltage(DC) | RA | Power(W/M) | LM/W | LM | Min.cut/mm |
| FOB-D504 | 2700K | 504 | FOB | 180° | 12V/
24V |
≥80≥90 | 14W | 100 | 1400-1500lm | 41.67 |
| FOB-D504 | 3000K | 14W | 100 | 1500-1600lm | 41.67 | |||||
| FOB-D504 | 4000K | 14W | 100 | 1600-1700lm | 41.67 | |||||
| FOB-D504 | 6000K | 14W | 100 | 1500-1600lm | 41.67 | |||||
| FOB-D504 | R | 14W | 15 | 270-280lm | 41.67 | |||||
| FOB-D504 | G | 14W | 80 | 1400-1500lm | 41.67 | |||||
| FOB-D504 | B | 14W | 23 | 400-420lm | 41.67 |
| Model-640LED/M | Colour | LEDs QTY. | LEDs Type | Beam angle(°) | Voltage
(DC) |
RA | Power(W/M) | LM/W | LM | Min.cut/mm |
| COB-D640 | 2700K | 640 | COB | 180° | 12V/
24V |
≥80 | 14W | 110 | 1400-1800lm | 25 |
| COB-D640 | 3000K | 14W | 110 | 1400-1800lm | 25 | |||||
| COB-D640 | 4000K | 14W | 110 | 1400-1800lm | 25 | |||||
| COB-D640 | 6000K | 14W | 110 | 1400-1800lm | 25 | |||||
| COB-D640 | R | 14W | 15 | 270-280lm | 25 | |||||
| COB-D640 | G | 14W | 80 | 1400-1500lm | 25 | |||||
| COB-D640 | B | 14W | 23 | 400-420lm | 25 |
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
