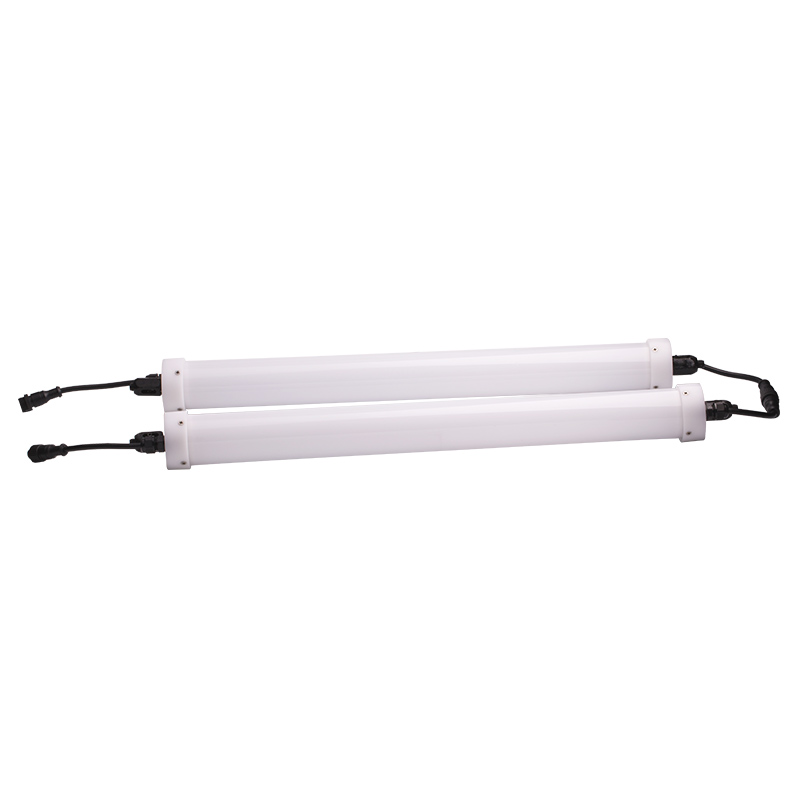

DMX LED STAGE TUBE-360 DEGREES EMITTING AND WITHOUT SHADOW

Professional led stage light

  • Diameter is 57mm,also,we can customized.
  • Using DC24V power supply and 18pixels per meter.
  • Using the International standard DMX512 communication protocol.
  • Double sides PCB leds,it can achieve 360 degrees emitting and without shadow.

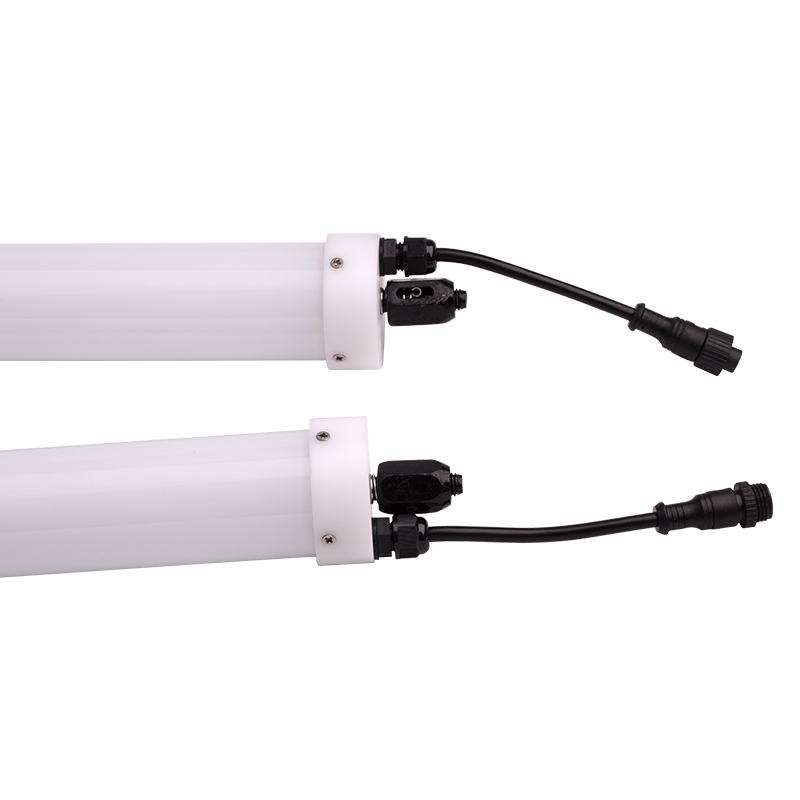

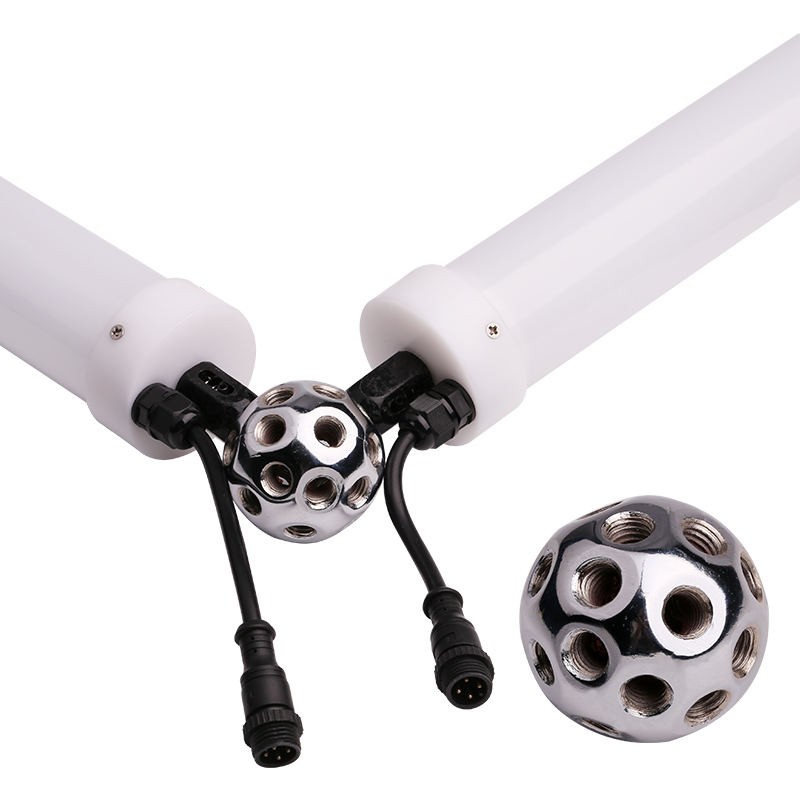

  • At the boths ending,we use the multi-fuction springs and it makes the product more flexible.Also,it works with universal ball joint and the stage lifting machine to control the tube up and down with effect changing.

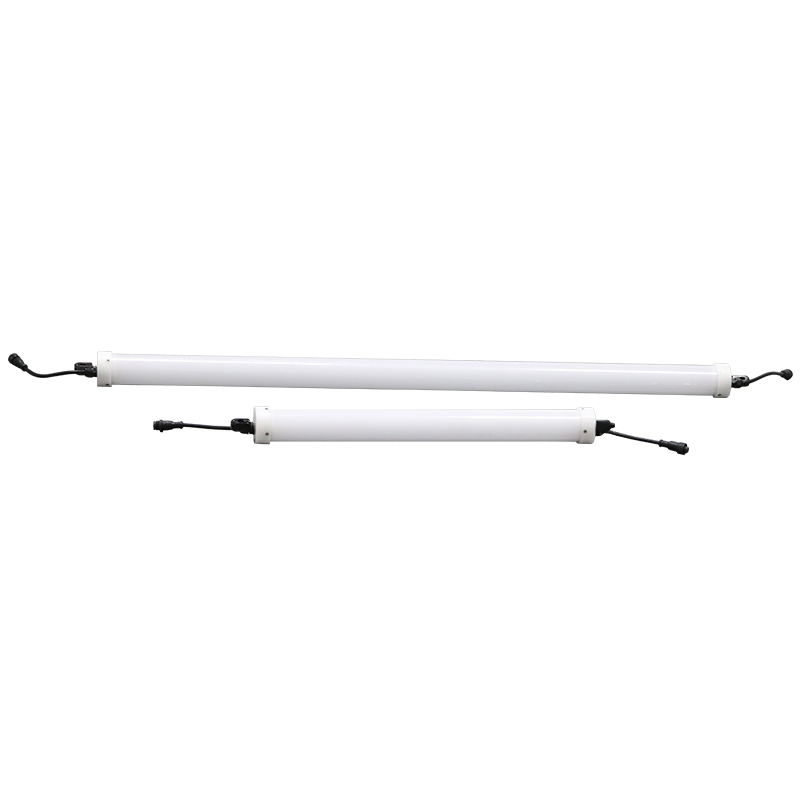

  • Normal size we have:0.5M/1M/1.5M/2M
Share This Product

Product Details

Features

  • Diameter is 57mm,also,we can customized.
  • Using DC24V power supply and 18pixels per meter.
  • Using the International standard DMX512 communication protocol.
  • Double sides PCB leds,it can achieve 360 degrees emitting and without shadow.
  • At the boths ending,we use the multi-fuction springs and it makes the product more flexible.Also,it works with universal ball joint and the stage lifting machine to control the tube up and down with effect changing.
  • Normal size we have:0.5M/1M/1.5M/2M
  • Using indoor,no waterproof

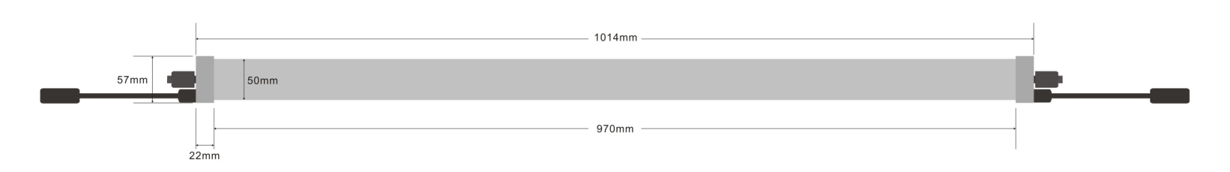

Diagram

Specifications

1 meter led strip Specifications

Model DMX512-360°digital stage tube
Pixels 18pixels/M
Voltage DC24V
Power 25.92W/M
Angle 360degrees
Color RGB full color
Control DMX IC control
Size 0.5M/1M/1.5M/2M


Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees

testing time light fades rate
500H 0%
1000H 0%
2000H 0.5%
4000H 1.2%
6000H 2%

Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters

Applications

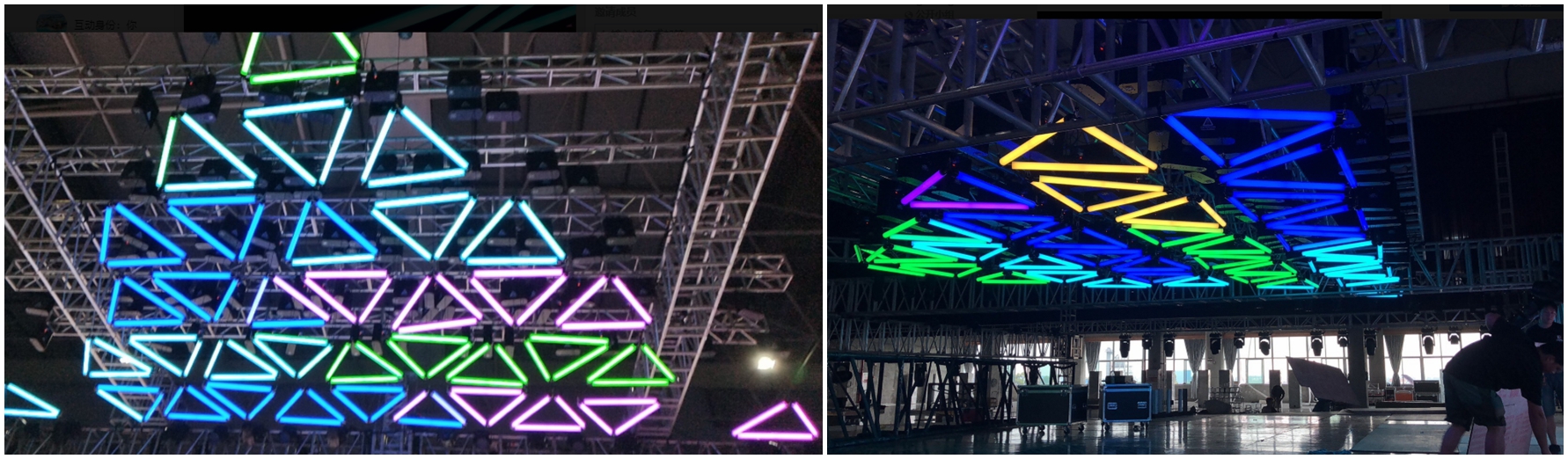

  • Using in the stage lighting design and some shows,KTV,and some supermarket ect.
Notes
  • Please read the specifications and precautions carefully before installation
  • Non-waterproof,only can be used indoor
  • Please take care of the tube when installasion
  • DC24V input voltage, check whether the voltage is consistent during installation
Download Data
