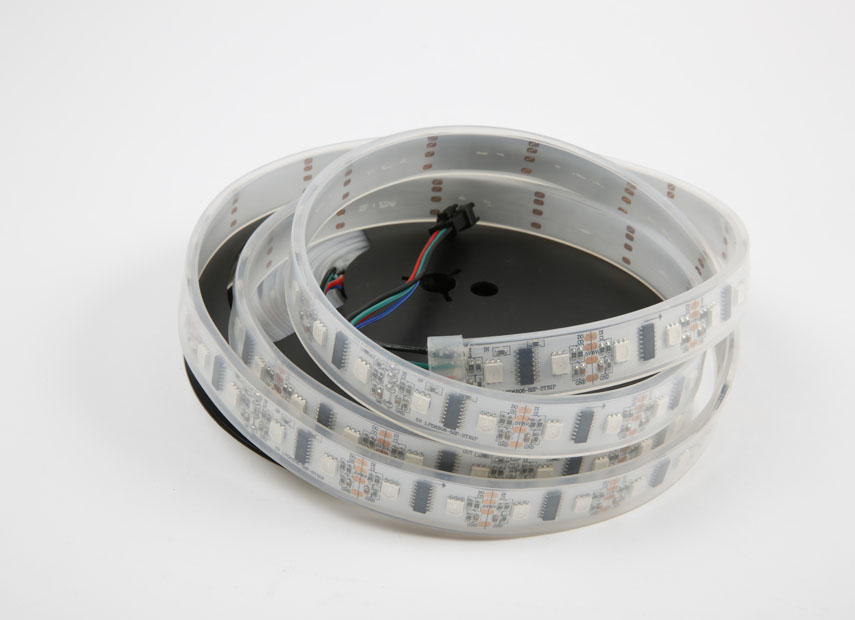

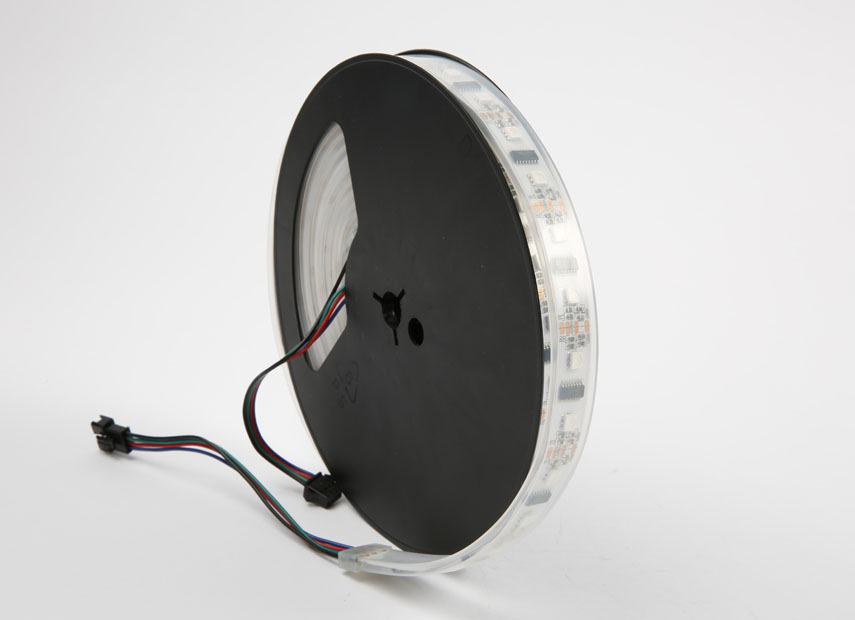

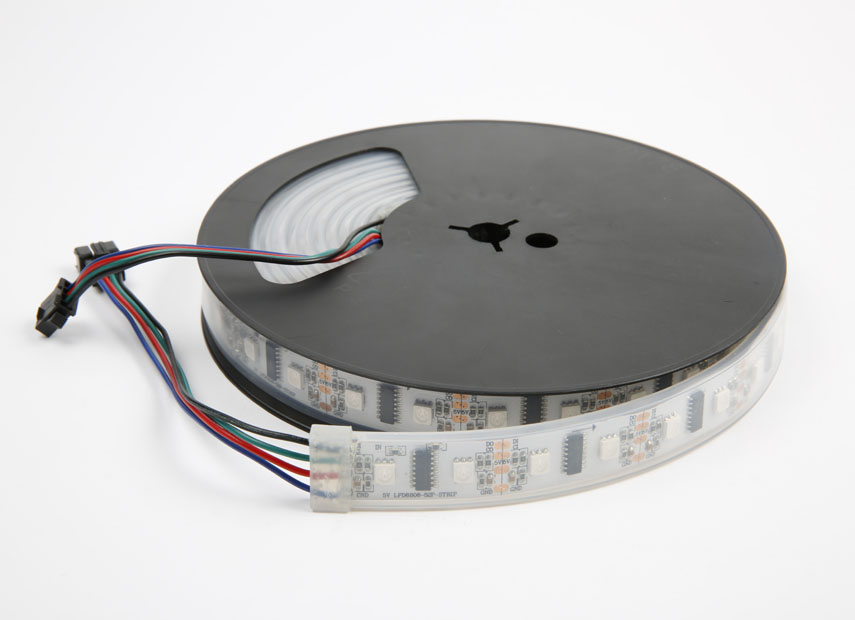

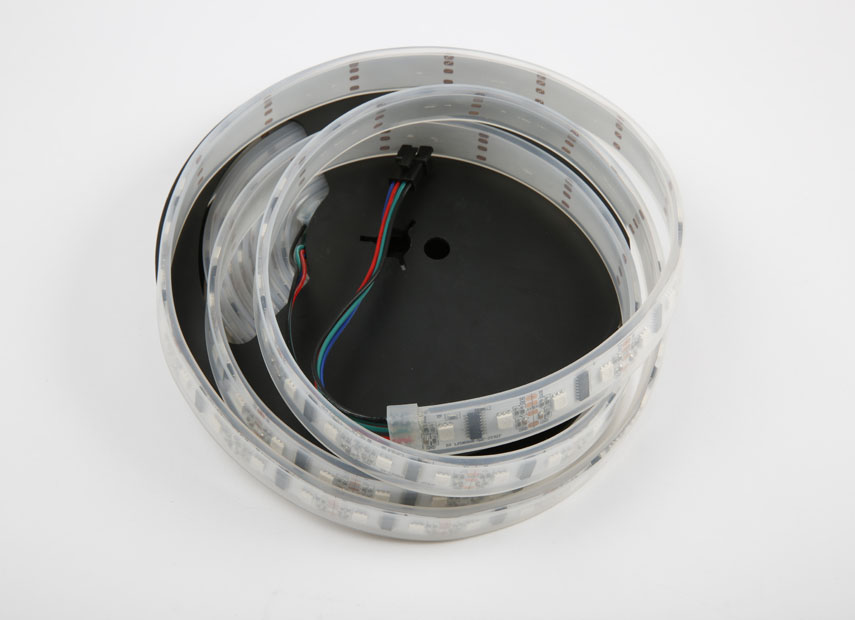

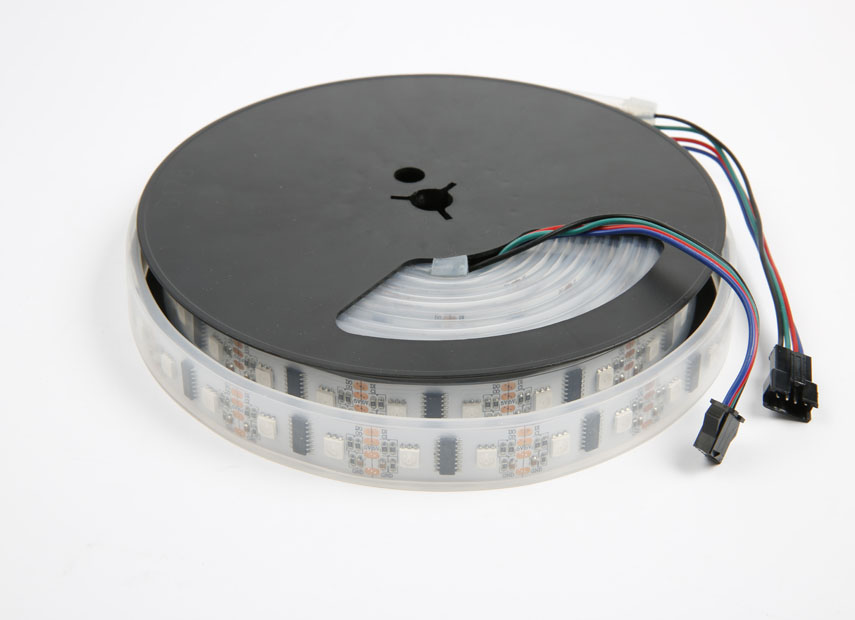

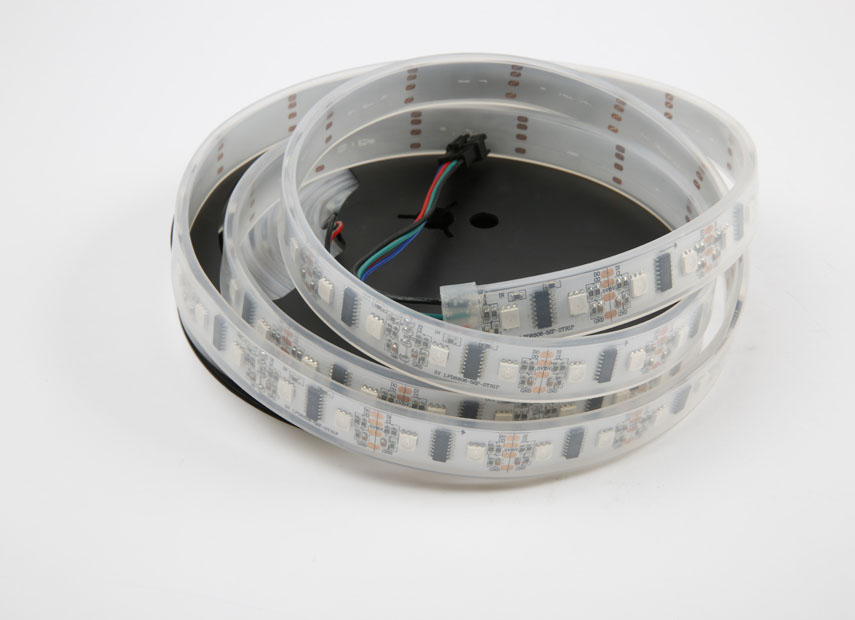

DC5V LPD8806 60LEDS PIXEL MAGNETIC STRIP LED LIGHT
LPD8806 LED STRIP
- LPD8806 LED Strip use the FPCB flexible printed circuit board to be assembly circuit boards use SMD LED lights and components to be assembled so that the thickness of the product only just like Occupy a small space and can be arbitrarily cut FPC is soft material can random winding and wound freely movable in three dimensional space without breaking suitable for irregular place and narrow space of places to install but also as any possible bending suitable for advertising decorative lighting any combination of the kinds of patterns .
- LPD8806 is double signal IC one data cable DAT one clock cable CLK two power lines 256
gray scale high brightness fast data transfer fast screen refresh etc with the controller you can achieve monochrome gradient water horse racing text numbers chase English pictures
animations video any effects and so on . - Products is using DC5V 12V low voltage to power supply high safety factor using the import big brand led chip to be the lighting source high brightness light fade is small maintenance free long lifespan energy saving and environmental protection based on the above characteristics More and more people choose digital led strip as lighting decoration product .
Share This Product
Product Details

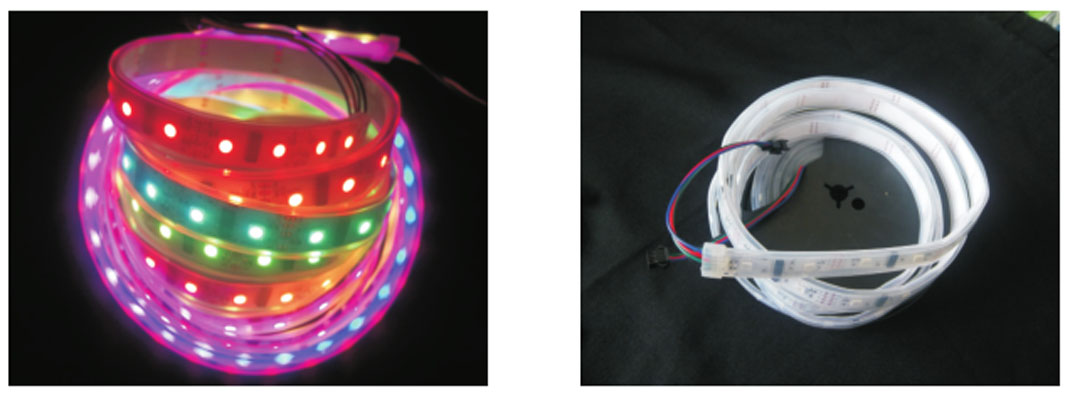

Features
- Adopt international leading manufacturer ’s chips high brightness width angle , color consistency, and stable performance.
- Each lamp beads form a loop, can be arbitrarily cut according to the needs of the length of the loop, without damaging other parts Convenient to Fix and install, flexible cutting operation make the construction simple, ultra-thin design, low temperature light source, make the selection for the auxiliary material more flexible on installation Energy saving, high brightness, low heat, low energy consumption,Clean, and beautiful.
- Use DC5V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.

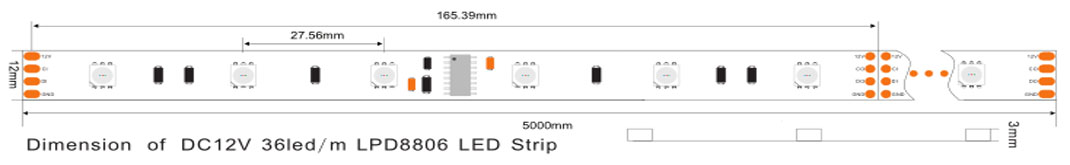

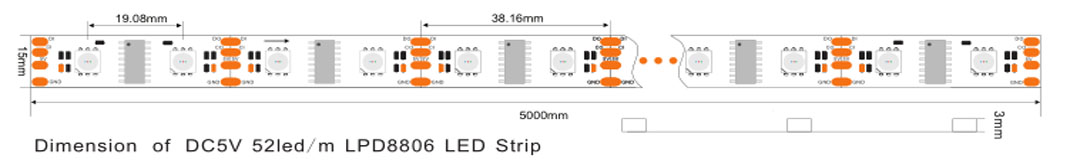

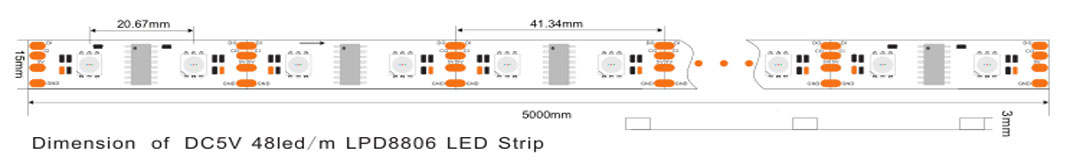

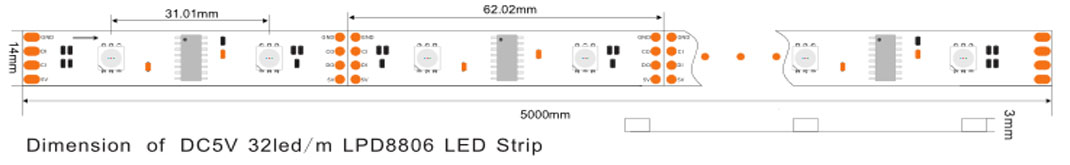

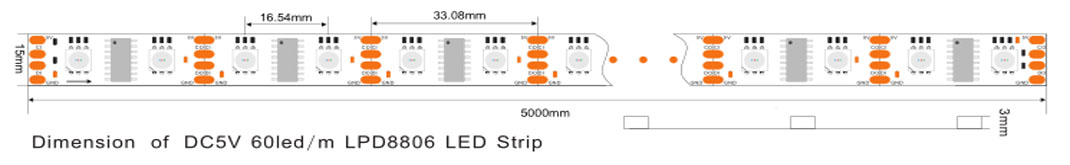

Dimension
Specifications

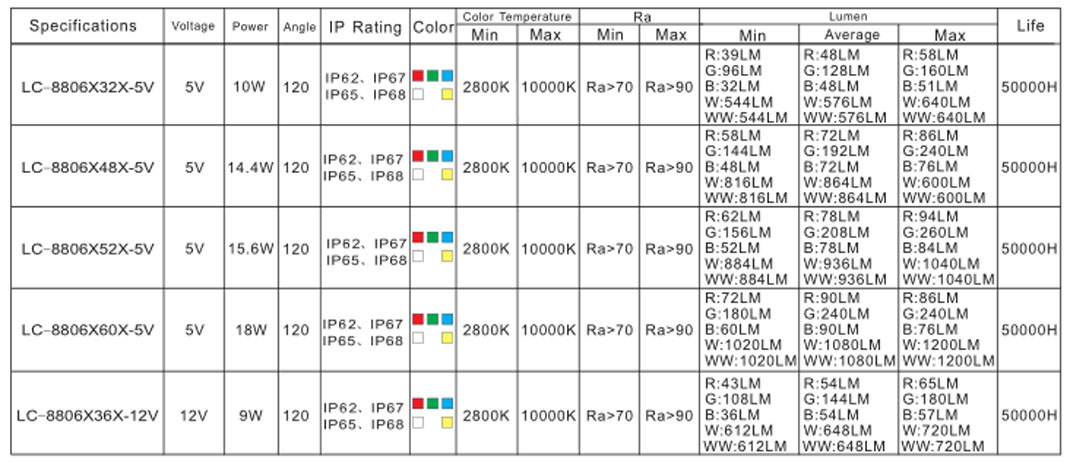

1 meter led strip Specifications
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
