12v ADDRESSABLE  LED STRIP LIGHT

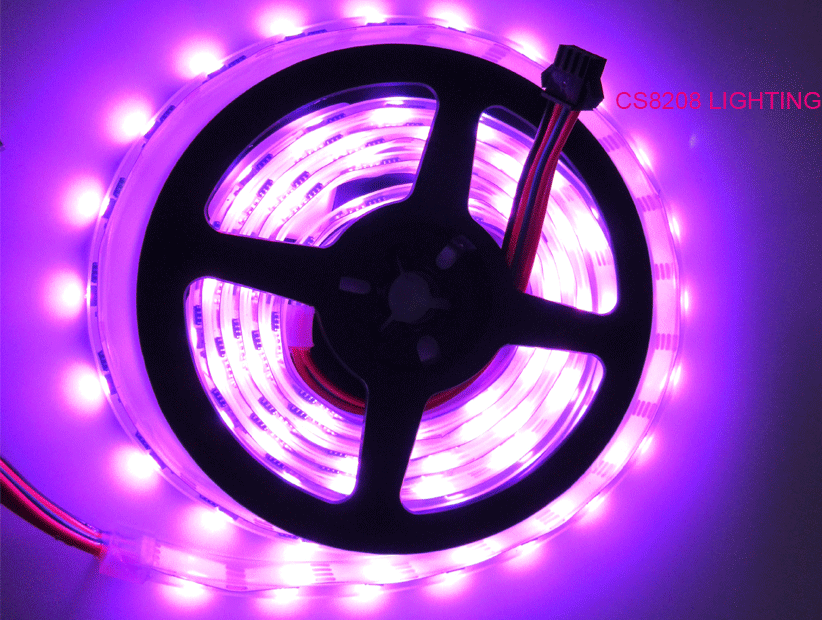

CS8208 12v Individually Rgb LED STRIP

  • In the market,we know only 5v strips would be fully addressable -1 chipset = 1 pixel,like ws2812b,ws2813,sk6812. We also know ws2811 led strip,it is 12v,but it is not addressable,it is 3leds/group,3leds/cut,not one led. We have cs2818 12v addressable led strip now,one ic with one led,it is individually.1,CS8208 12v Addressable full color led strips.

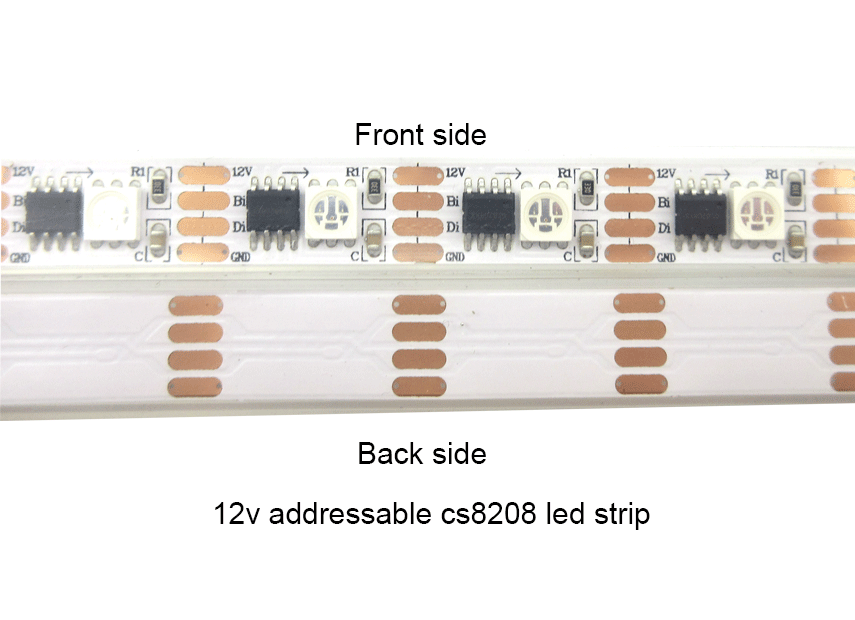

    2,Individually control —— 1IC & 1LED chip.

    3,Standard Reel Lengt: 5meter/roll, also can be customized.

Share This Product

Product Details

Features

addressable rgb led strip

1,New product CS2808 led strip which can change any color/pattern no need the controller, and comes with more than 33 kinds of color. if you need more color effects,it also can work with controler,like k1000c,k8000c,t5000k,same programm with ws2811/ws2812b.

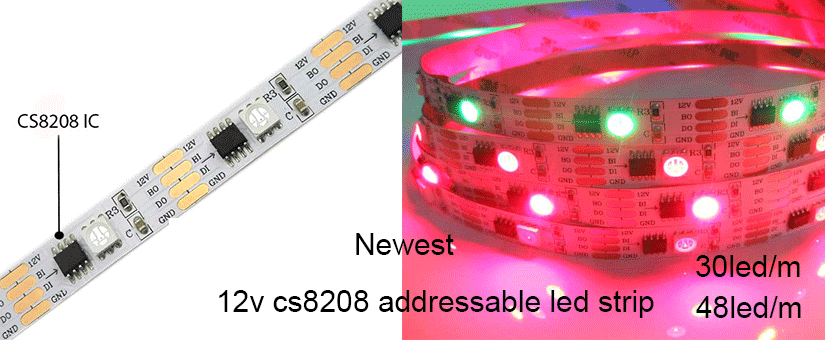

2,CS2808 a new version addressable LED based on WS2813B,it is 12v addressable.

3,The advantage is when 1pcs IC burn, the other LED will keep working.

4,It’s 5meters in a reel and 30 Pixel/LED per meter ,Cutted: 1 integrated RGB LEDs per segment.

5,With 33 kinds mode in the IC.

6,break-point continue,same with ws2818/ws2813.

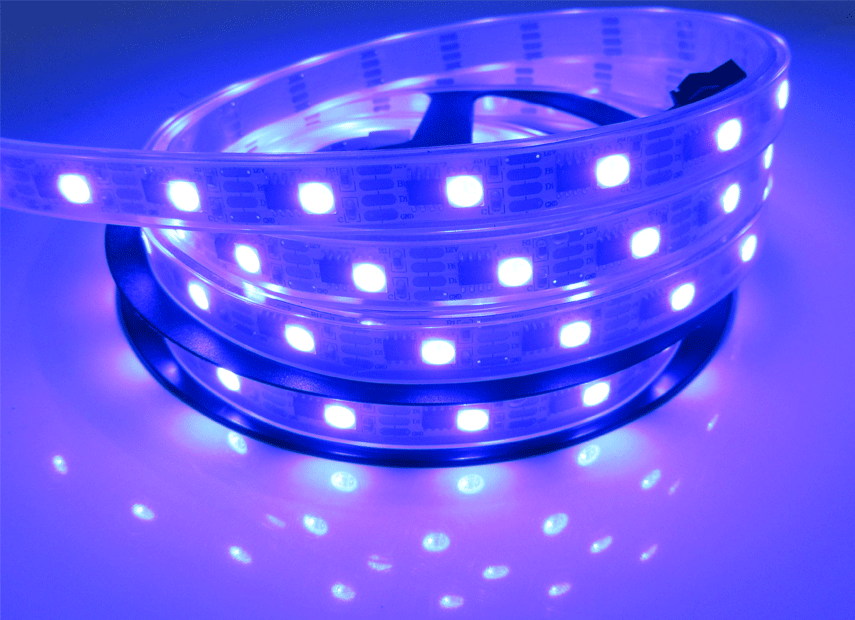

7,3M adhesive attached on strip,waterproof version IP65,silicon tube coating.

8,With a pair of JST SM connector (IP20).

9,No voltage drop within 5 meters,For 12v 30led,it is 7.2w/m,for 12v 48led,it is 11.52w/m.

10,If you need DC12V individually addressable,it can replace ws2813 ws2812b sk6812-5V led strip.

Dimension

30leds

60leds

Specifications

Product Parameters

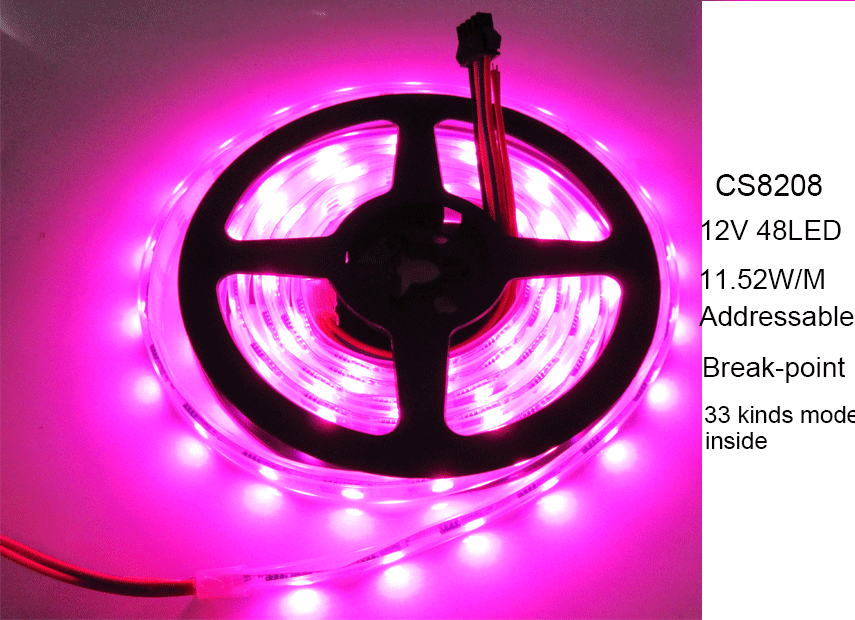

CS8208 LED Strip-48leds
Product Number WST-12V-2808 Operating Voltage DC12V
LED Chip SMD 5050 Power (w/m) 11.52W
PCB width 10 mm PCB Color White/black
Beam Angle 120 ° Waterproof Rating IP 20/IP65
LED Quantity (leds/m) 48leds/m Emitting color Full color
Control CS8208
Luminance(MCD) R:12000mcd G:21000mcd B:5700mcd
LED Strip Size L 5000*W 10 mm
Package 5m/1 roll (LED anti-static aluminum foil bags)
Applications

application

  • City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
  • Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
  • establishments ceiling cavity design)
  • Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
  • Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
  • Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
  • Please read the specifications and precautions carefully before installation
  • Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
  • Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
  • This product is a constant voltage DC12V, make sure Power is right before installation, after installation, check the wiring is
  • correct or not , so that avoid the product been burned
  • This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
