DMX512 Rgb LED Strip

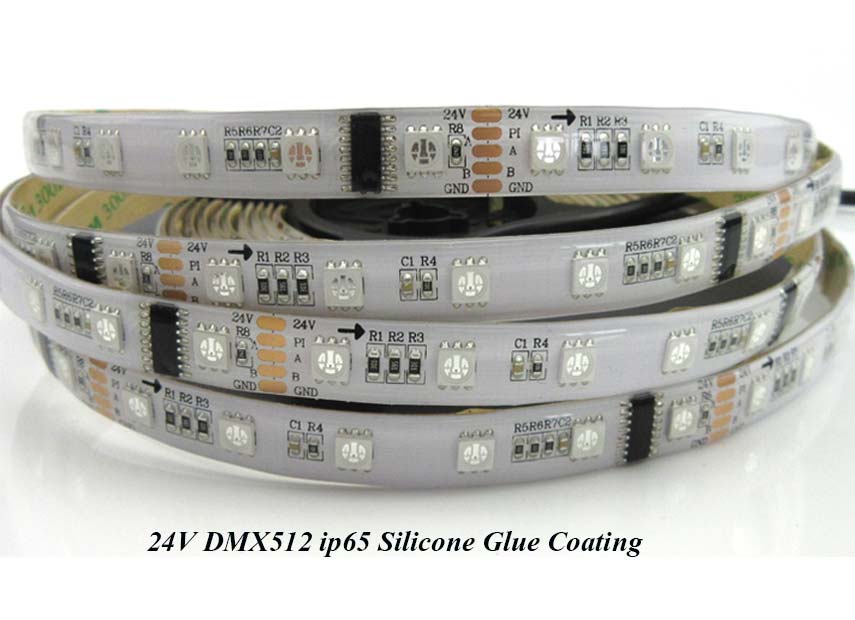

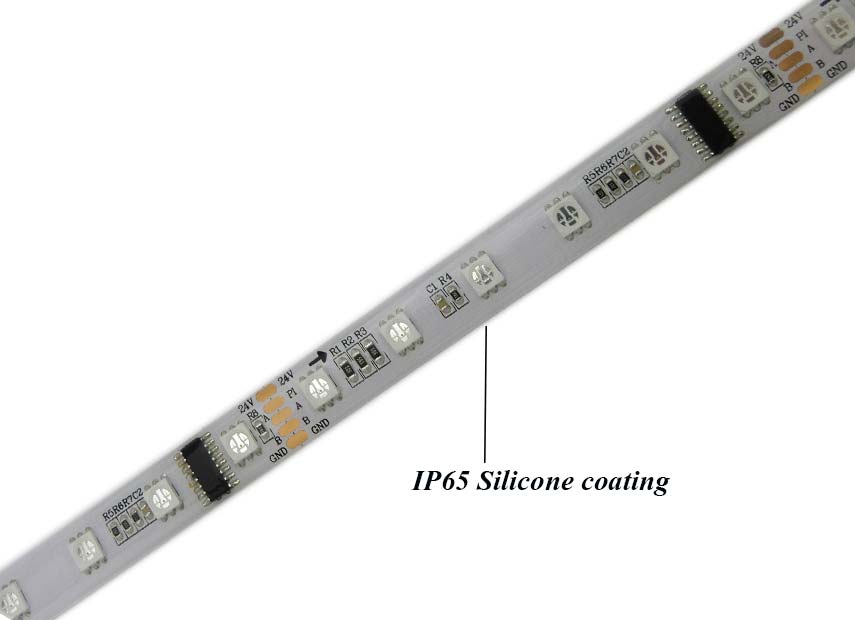

24v 60led/m,ip65 silicone glue coating

DMX512 led strip

1,No matter what or how many ic broken,the led strip will work normally.

2,Support standard dmx512 control system

3,Addressable 24V RGBW DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX-  (B): connect to controller DMX- (B)
GND: connect to power supply GND & controller GND

Share This Product

Product Details

Features
  • Product features1. Led quantity: 60pcs Epistar RGB 5050 SMD per meter
    2. single led current: 60mA
    3. Lifespan: 50,000 hours
    4. CRI: 80Ra
    5. Luminious (mcd): R:25600 G:54400 B:22400
    6. Board material: FPC
    7. View angle: 120 degree
    8. Standard length: 5m/Reel
    9. Input votage: DC24V
  • Adopt international leading manufacturer ’s chips high brightness width angle  , color consistency, and stable performance.
  • Each lamp beads form a loop, can be arbitrarily cut according to the needs of the length of the loop, without damaging other parts Convenient to Fix and install, flexible cutting operation make the construction simple, ultra-thin design, low temperature light source, make the selection for the auxiliary material more flexible on installation Energy saving, high brightness, low heat, low energy consumption,Clean, and beautiful.
  • Use DC5V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech products.

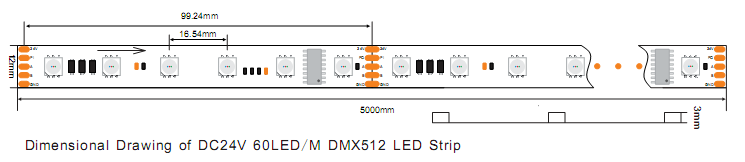

Dimension

dmx512 led strip

dmx512 rgb led strip

Specifications

dMX512 Technical Parameters

Model NO. WST-24V-DMX
LED quantity 60LEDs/meter
IC type DMX 512
View angle 120 degree
Waterproof grade IP20/IP65
PCB Width 12mm
Standard Length 5 meters/roll, custom length is available
PCB Color black/white
Voltage  DC 5V
Power consumption 14.4W/meter
Working temperature -20~60 degree
Lifespan 50,000 hours
Warranty 3 years
Diagram

Strip cut schematic

diagram_02

LED strip wiring diagram

diagram_04
diagram_05
diagram_06
diagram_07

LED strip wiring diagram

diagram_09
diagram_10
diagram_11
diagram_12

Installation wiring diagram

diagram_14
diagram_15
diagram_16

IP62,IP65 the installation diagram

diagram_18
diagram_19
diagram_20

IP67,IP68 the installation diagram

diagram_23 diagram_24
