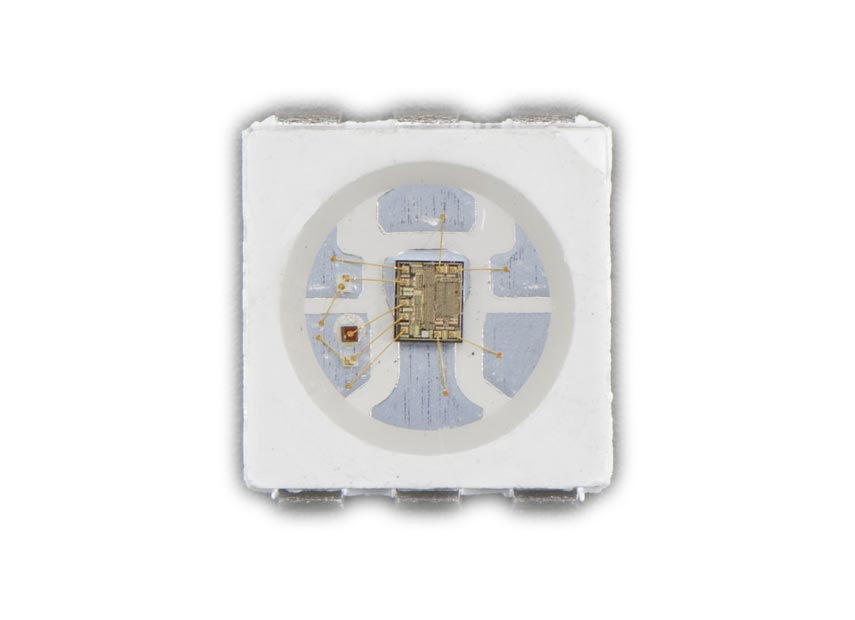

  • SK9822 is a two-wire transmission channel three (RGB) driving intelligent control circuit and the light
    emitting circuit in one of the LED light source control. Products containing a signal decoding module,
    data buffer, a built-in constant current circuit and RC oscillator; CMOS, low voltage, low power
    consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment; use the double
    output, Data and synchronization of the CLK signal, connected in series each wafer output action
    synchronization.
Share This Product

Product Details

Features

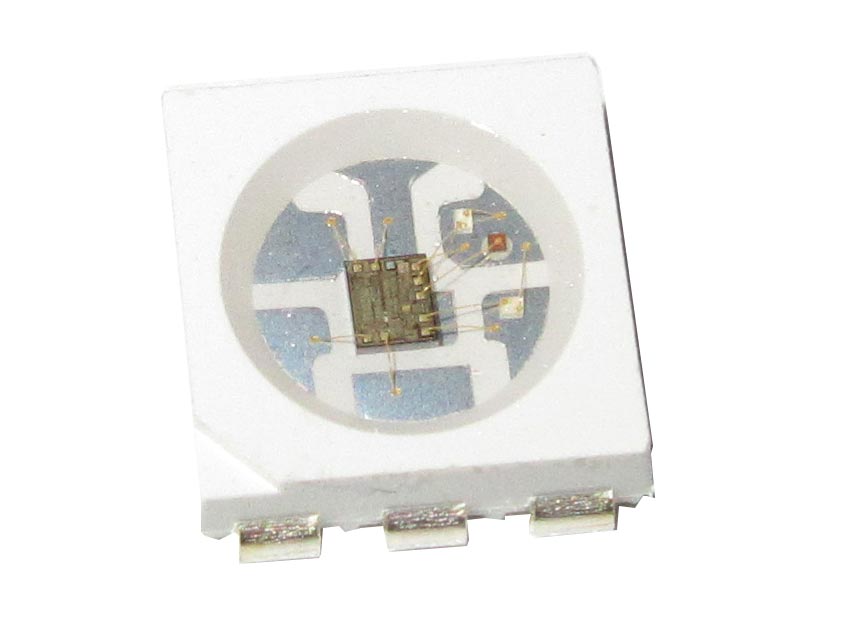

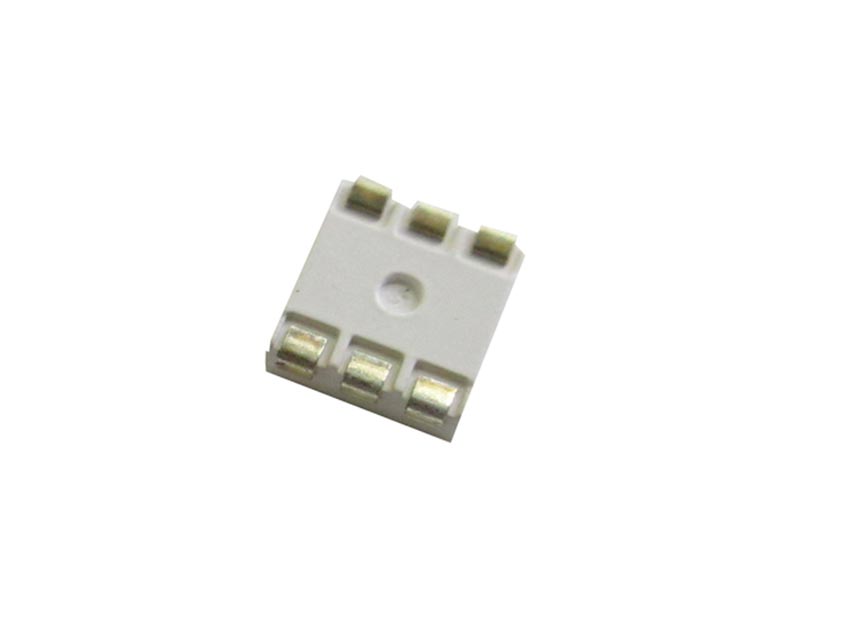

SK9822 addressable intelligent rgb led

Description:

  • Top SMD internal integrated high quality external control line serial cascade constant current IC; 5V
    application; default on electric lights;
    Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel,
    color mixing uniformity and consistency;
    The two-wire synchronous control.
    The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness;
    The three constant current drive, self detection function specific signal
    The maximum frequency of 30MHZ serial data input
    The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a
    static image.
Specifications

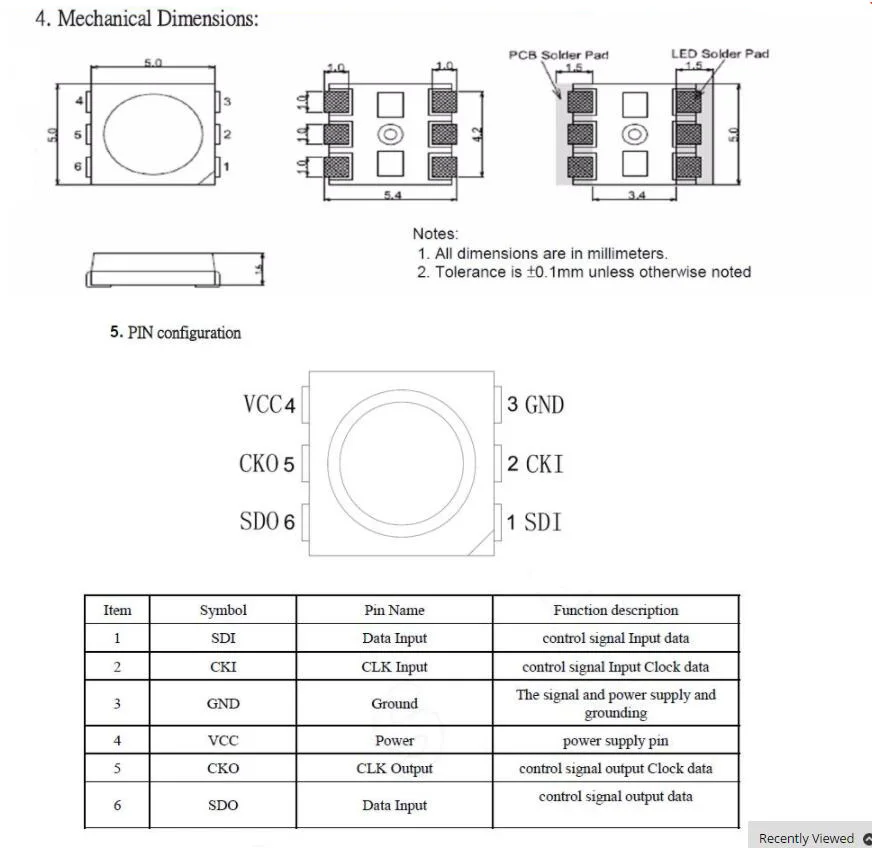

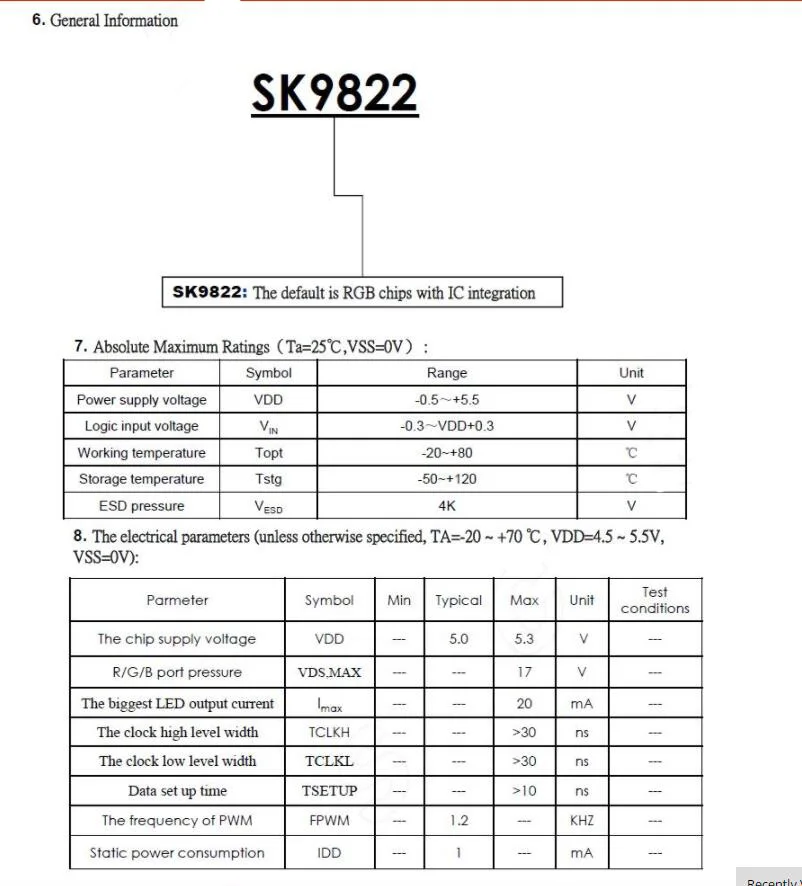

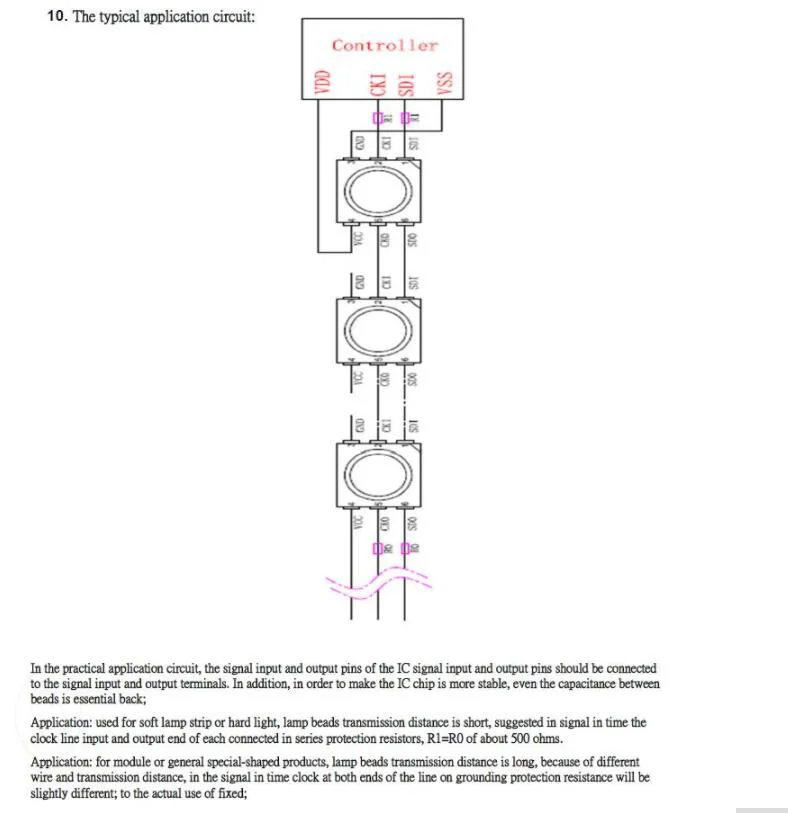

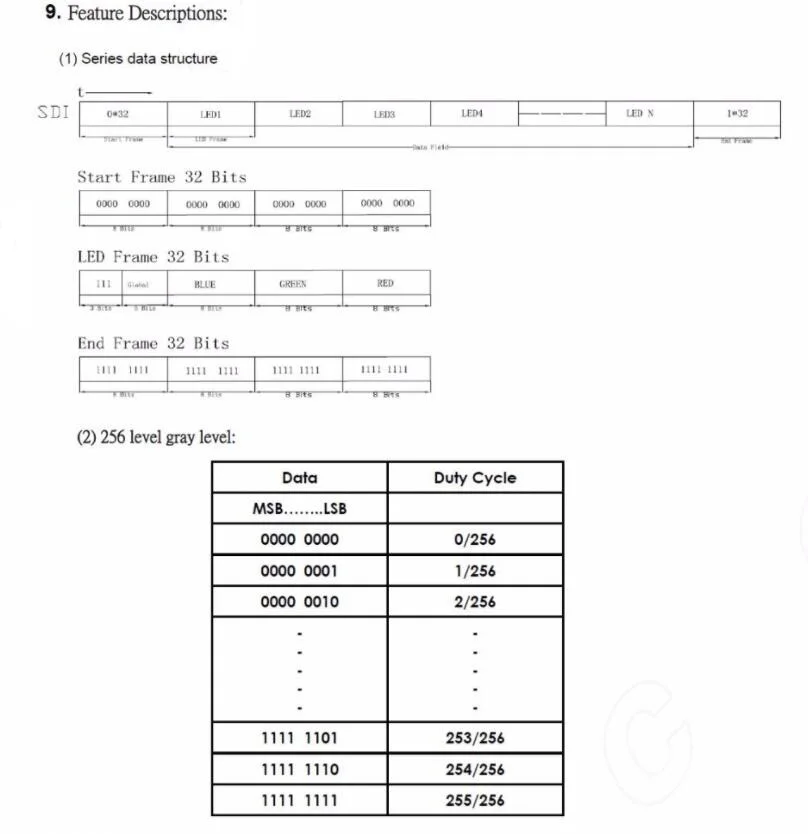

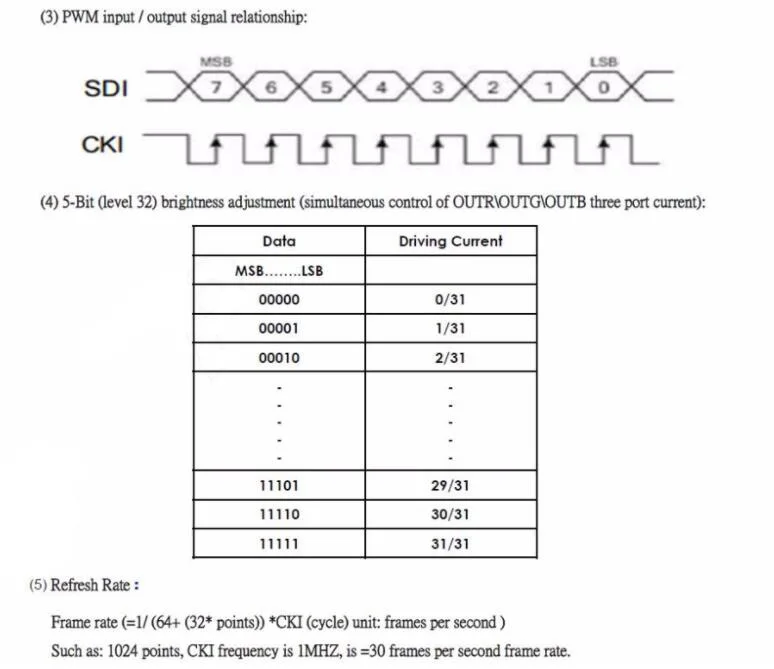

SK9822-S1SK9822-S2SK9822-S3SK9822-S4SK9822-S5
Diagram

Strip cut schematic

diagram_02

LED strip wiring diagram

diagram_04
diagram_05
diagram_06
diagram_07

LED strip wiring diagram

diagram_09
diagram_10
diagram_11
diagram_12

Installation wiring diagram

diagram_14
diagram_15
diagram_16

IP62,IP65 the installation diagram

diagram_18
diagram_19
diagram_20

IP67,IP68 the installation diagram

diagram_23 diagram_24
