How to Connect the ws2813 Led strip?

ws2813 led is ws2812 update version,dual-signal wires , signal break-point continuous transmission ,the ws2812b is regular addressable with one data wire, V+&V-.

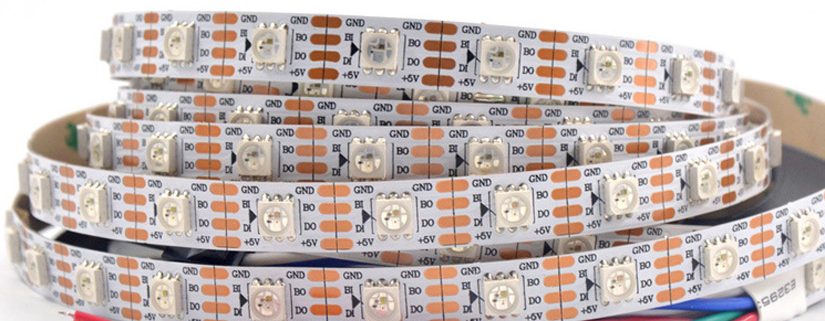

first, get some features about ws2813 led strip.
Adopt international leading manufacturer’s chips high brightness width angle color consistency and stable performance Each lamp beads form a loop can be arbitrarily cut according to the needs of the length of the loop without damaging other parts Convenient to Fix and install flexible cutting operation make the construction simple ultra thin design low temperature light source make the selection for the auxiliary material more flexible on installation Energy saving high brightness low heat low energy consumption Clean and beautiful;Use DC5V to power supply more safe on using Protection Rating IP62 IP65 IP67 IP68 use range is wide Small multi colored no radiation high shock resistance is a new generation of green high tech products.

Some Application
1.City skyline lighting villas advertising wall signs Christmas decorative landscape
2.Irregular design of body decoration shopping malls hotels nightclubs polygonal wall KTV establishments ceiling cavity design
3.Public lighting lighting schools libraries hospitals airports subway stations railway stations
4.Furniture dark groove trim door bar wine cabinet wardrobe TV cabinets etc
5.Automotive beauty body underbody wheelbarrow balanced car etc

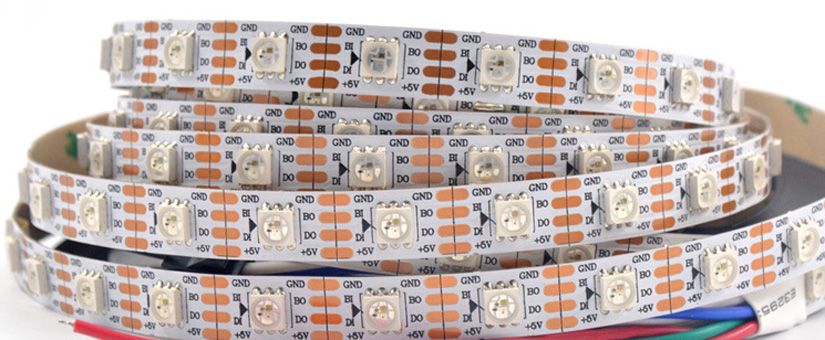

Regular, the ws2813 we have 30led&60led&144led per meter. more than 5M/roll will be Voltage Drop.so 5M/roll is the best.

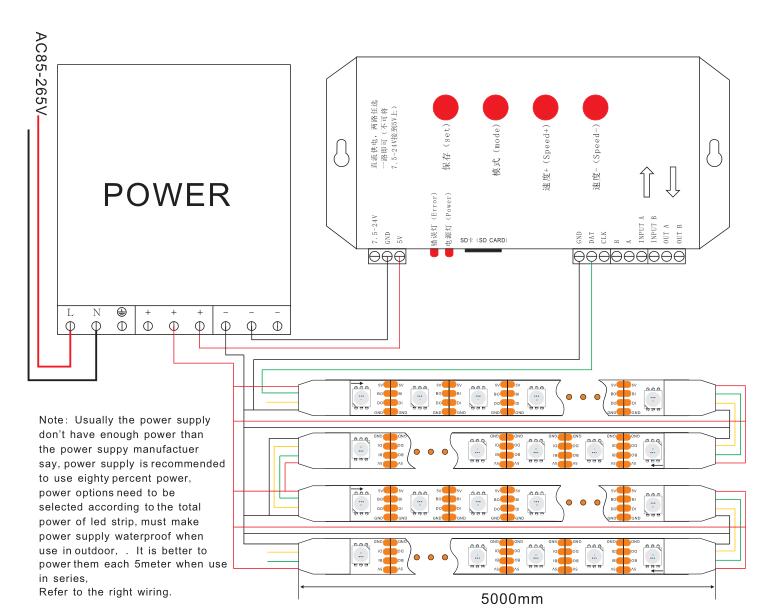

How to Connect the Ws2813led strip?

You can control WS2183 LED strips from the FastLED library.

Use the “WS2812” type and set-up the LED strip by specifying the DATA PIN.

Now connect BOTH centre pins of the strip to this pin and the strip should work.

I’ve been searching for this for ages and finally got my strip to work!
