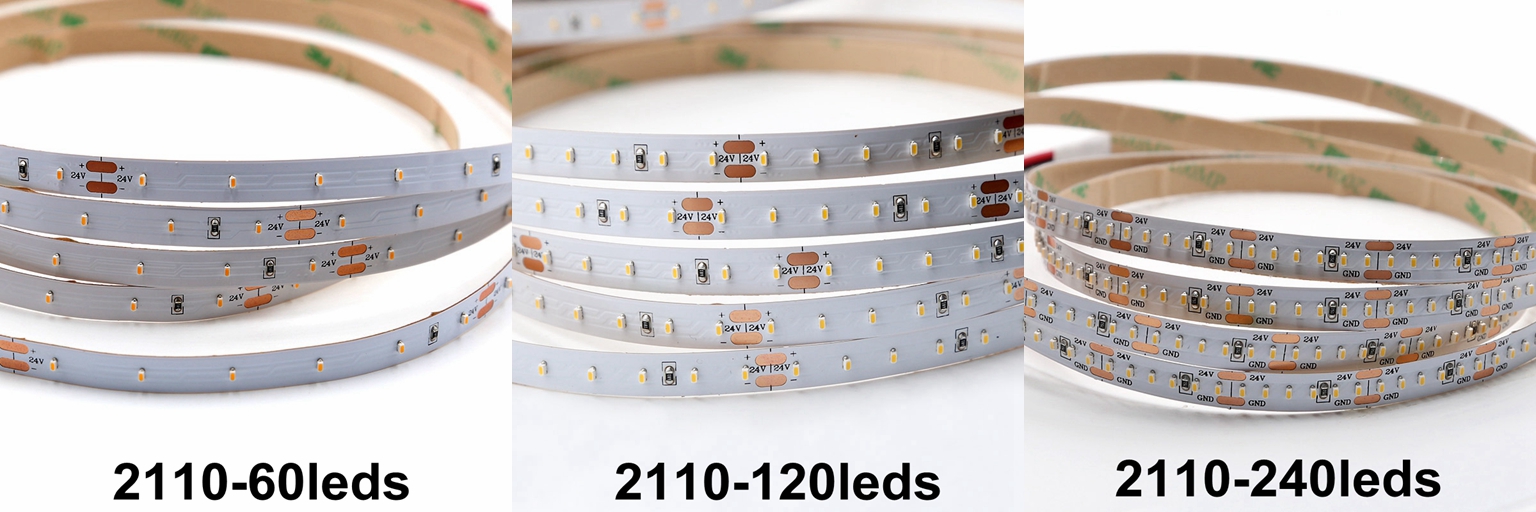

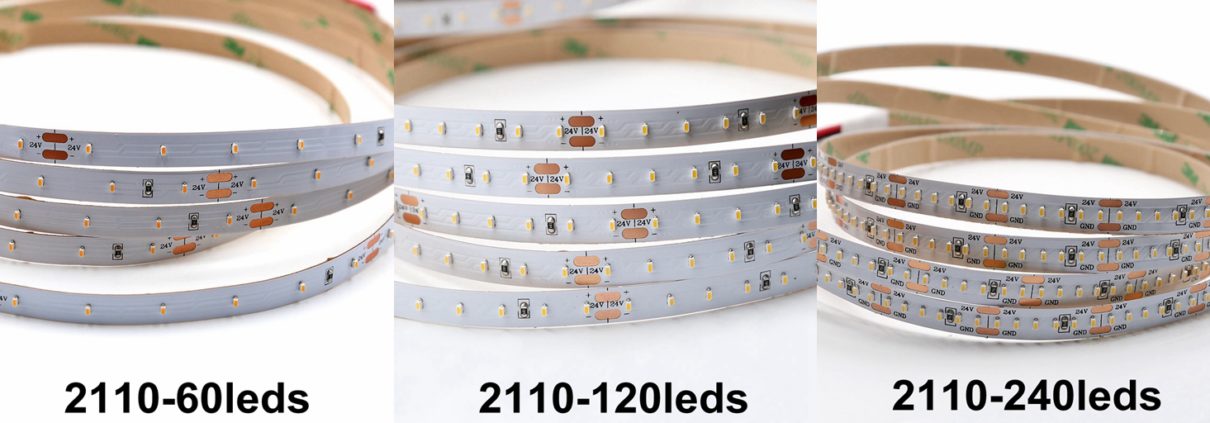

CRI 90 24V 60/120/240/280/300/308/700 LEDS 2110 LED Strip Light Series

/in , /by

CRI 90 24V 60/120/240/280/300/308/700 LEDS 2110 LED Strip Light Series

2110 this model only support DC 24V, the led quantity support 60/120/240/280/300/308/700 PCS. And strip supported warm white, nature white and cold white. The color temperature between 2300K to 6500K. It can be replaced with the 2216,2835,3014,3528 like these white color led strips. And the functions more better. CRI 90,one bin only.Maybe some people not very understand what is one bin only, here I can explain. One bin only means the led chip color is only one color. Sometimes the led chips would appear the two bin, three bin that will make the led strip lighting different color temperature.

1, 60 LEDS per meter, 5-6 lm per led,300Lm/M,Power 4.8W/M,125 lm/W,PCB Width 8mm.

2, 120 LEDS per meter, 2.5 lm per led,600 lm/M, Power 4.8W/M ,125 lm/W,PCB Width 8mm.

3, 240 LEDS per meter, 2.5 lm per led, 1200 lm/M, Power 9.6W/M, 125 lm/W,PCB Width 8mm.

4, 280 LEDS per meter , 2.5 lm per led, 700 lm/M , Power 9.6W/M, 72.9 lm/W,PCB Width 4mm.

5, 300 LEDS per meter, 2.5 lm per led, 1500 lm/M,Power 12W/M, 125 lm/W ,PCB Width 8mm.

6, 308 LEDS per meter, 2.5 lm per led, 1540 lm/M, Power 10.56W/M, 145.8 lm/W, PCB Width 8mm. This led strip is double temperature , one Warm white led +one Nature white led or Cold white led on the one pcb.

7, 700 LED per meter, 2.5 lm per led, 3500 lm/M, Power 19.2 W/M, 125 lm/W,PCB Width 8mm.



The led strip support waterproof IP20,IP65,IP67,IP68. The materials support silicone glue, silicone tube and NEON tube.



info@witop-tech.com

www.witop-tech.com

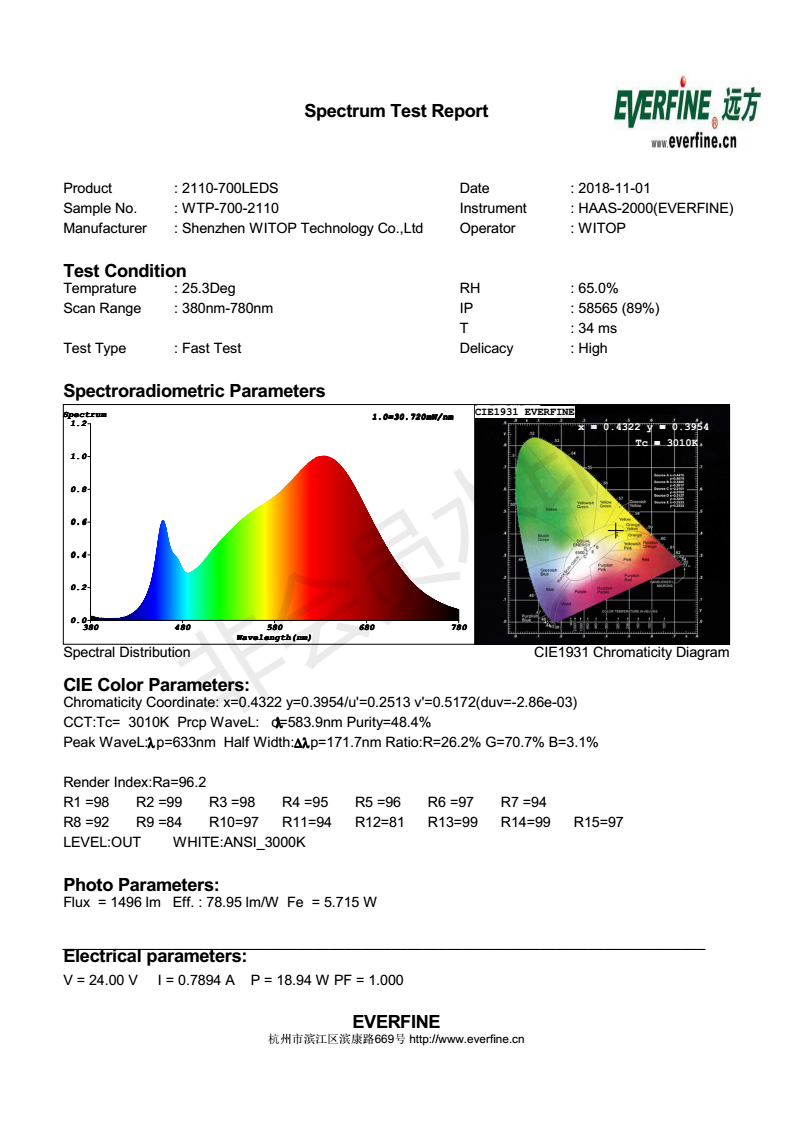

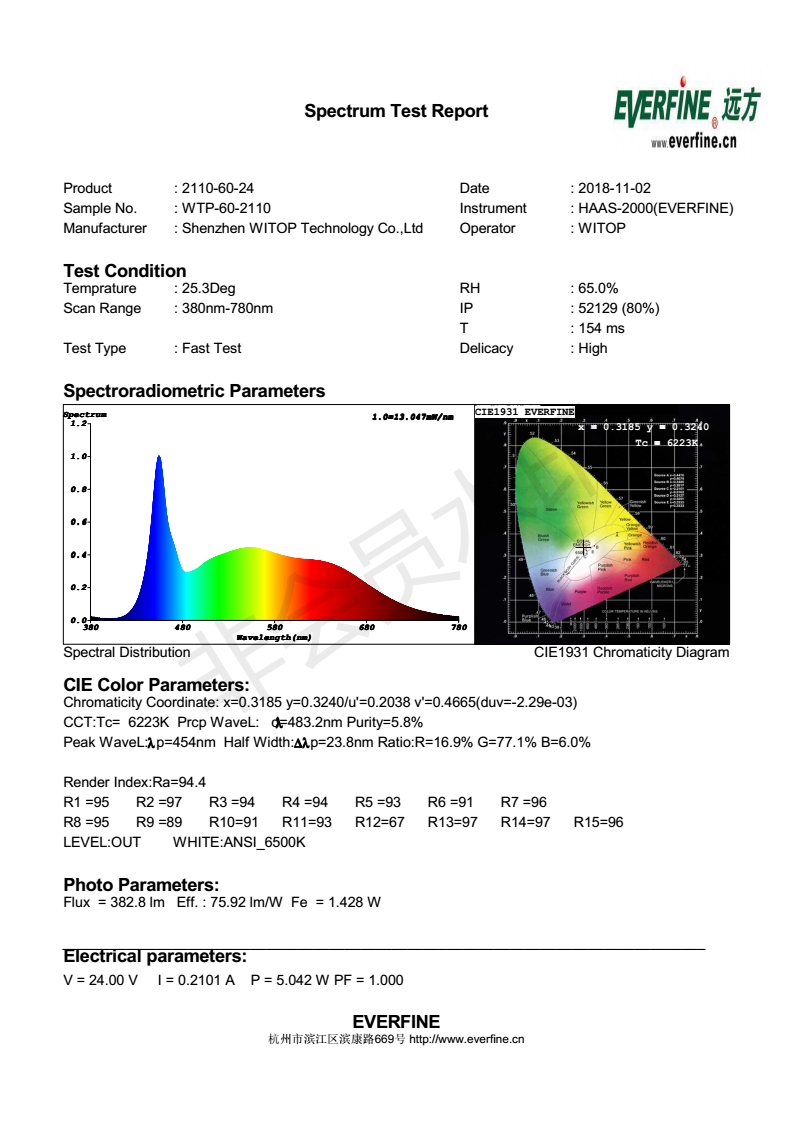

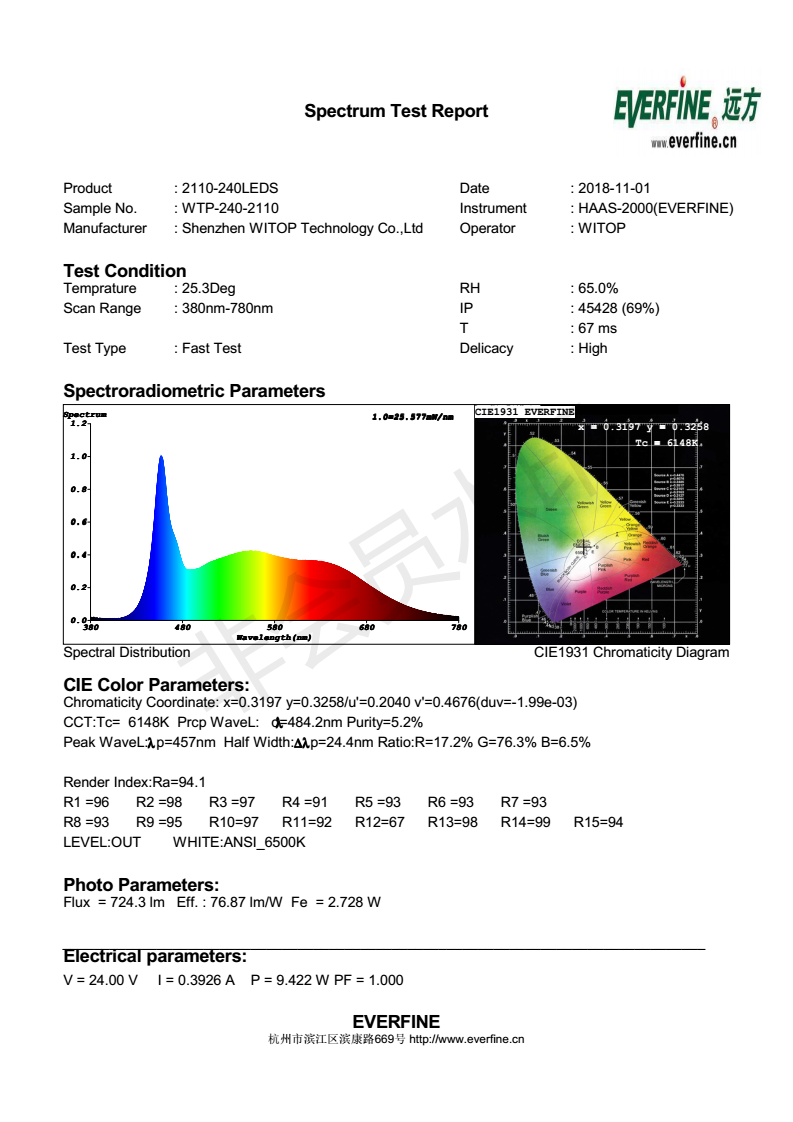

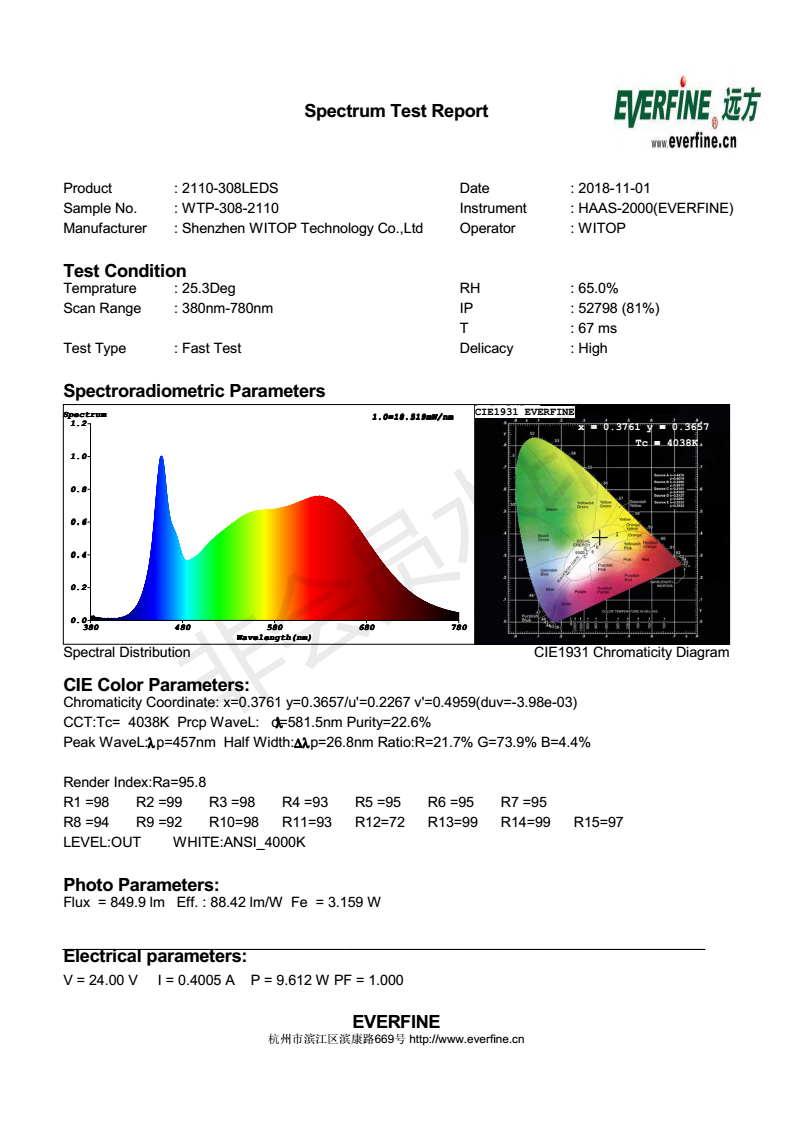

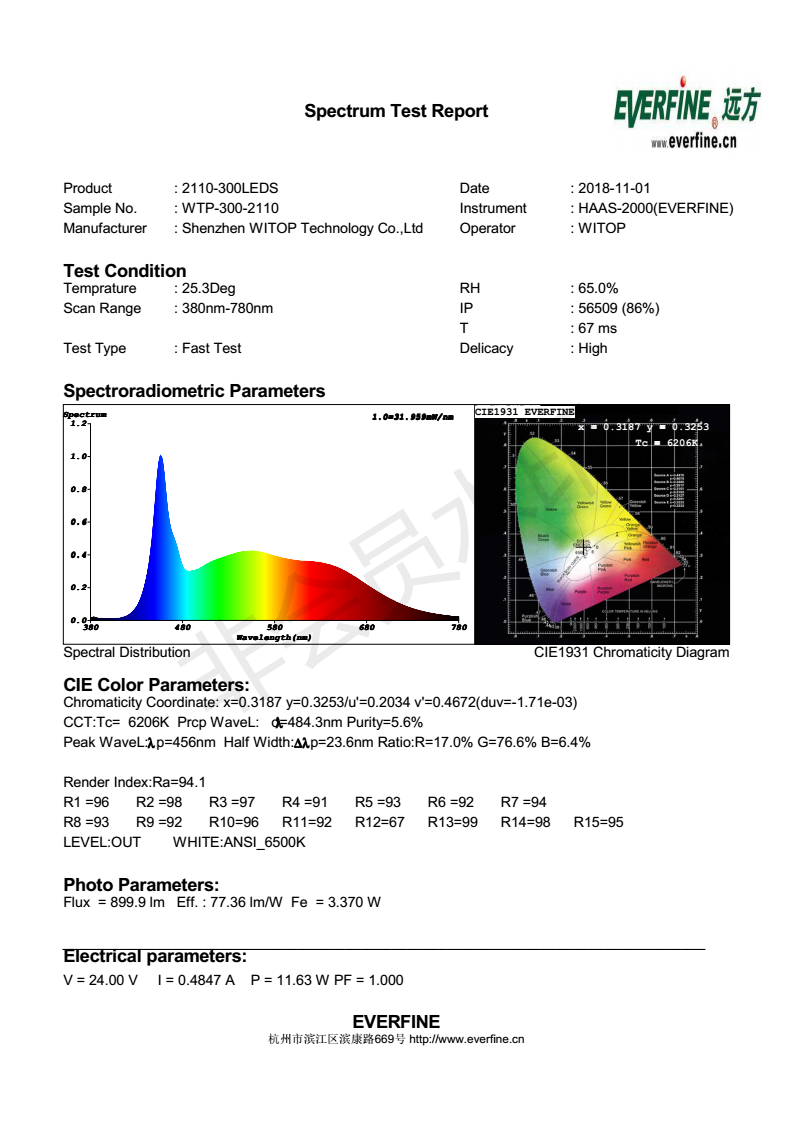

Belowing is the Integral ball test report for SMD2110–

Integral ball test report
