Witop Dc5v Addressable Ws2812b 5050smd Rgb LED Ring Light

June 12, 2017/in Blog /by admin

This NeoPixel ring from Adafruit consists of 16 individually addressable RGB LEDs that can all be controlled with a single digital output of a microcontroller and chained together with other rings and SK6812/WS2812b-based LEDs to make larger, more complex displays. This small ring has a 1.75″ (44.5 mm) outer diameter and 1.25″ (31.8 mm) inner diameter.

We also carry two other types of LED rings: a 24-LED ring with a 2.6″ (66 mm) outer diameter and 16-LED quarter-circles that can be combined to make a 32-LED ring with a 6.2″ (158 mm) outer diameter.

The ring can be controlled by many microcontrollers, but our A-Star 32U4 Micro works particularly well for applications where space is an issue since it fits neatly inside the ring. The picture on the right shows an A-Star 32U4 Micro controlling three different sizes of NeoPixel rings. See the Protocol section near the bottom of this page for some things to consider when selecting an appropriate microcontroller.

The Adafruit NeoPixel library for Arduino makes it easy to use an Arduino-compatible board to control the ring’s LEDs, and since NeoPixels are based on the same SK6812/WS2812B LEDs as our Addressable RGB LED Strips, you can also use our Arduino library for addressable RGB LED strips, Example AVR C code for addressable RGB LED strips, and PololuLedStrip mbed library to control the ring.

For more detailed documentation and resources on Alibaba.com, see the ShenZhen Witop Technology Co.,Ltd.

Features and specifications
16 individually addressable RGB LEDs (SK6812- or WS2812B-based NeoPixels)
Circle outer diameter of 1.75″ (44.5 mm) and inner diameter of 1.25″ (31.8 mm)
24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
One-wire digital control interface
Operating voltage: 5 V
Each RGB LED draws approximately 50 mA at 5 V with red, green, and blue at full brightness (~800 mA max for the ring)
Multiple NeoPixel rings can be chained together
Detailed Adafruit NeoPixel Uberguide

Connections

The pin labeled Power Signal Ground is the ground pin, and should be connected to the ground pin of the microcontroller that is controlling the LEDs and also to the negative terminal of the power supply. The version of this product shipped by Pololu after September 10, 2014 include a second ground pin close to the first.

The pin labeled Power 5V DC is the power input pin, and should be connected to a suitable power supply. An input voltage of 5 V is used to power the ring, and each LED on the ring can draw up to 50 mA at 5 V when outputting white at full brightness. That means the ring could draw up to a maximum of around 800 mA.

The pin labeled Data Input is an input that receives the signal controlling the LEDs. This pin should be connected to a microcontroller output pin or to the signal output pin of a SK6812/WS2812b-based LED product.

The pin labeled Data Out is optional. It can be connected to the data input pin of another SK6812/WS2812b-based LED product in order to form a chain.

Our 0.1″ header pins could be used to connect to the ring’s four pins, or wires could be soldered directly to the board. The ring does not ship with any header pins or connectors.

NeoPixels can be easily damaged if proper precautions are not taken when using them. In general, for SK6812/WS2812B-based products, we suggest adding a capacitor of at least 10 μF between the ground and power lines and a 100 Ω to 1000 Ω resistor between your microcontroller and the signal input pin. More details on best practices when using NeoPixel products can be found in the Adafruit NeoPixel Uberguide.

Protocol
The NeoPixels are controlled by a simple, high-speed one-wire protocol that requires sub-microsecond timing. The details of this protocol are explained in the Adafruit NeoPixel Uberguide. It is generally not possible to generate the required control signals directly from older, slower microcontroller boards, like the Basic Stamp, or from processors that run full operating systems and can experience multithreading delays, like the Raspberry Pi.

About Us

Shen zhen WITOP TECHNOLOGY Co.,Ltd is a product R & D, manufacturing, sales and service LED lighting enterprises. It is the one of biggest addressable LED lighting manufacturer in China .The company mainly devotes to the high quality LED landscape decoration and lighting production, technology development and sales, the main products are as follows

1,LED flexible strip

2,LED full-color module

3,LED Matrix panel

4,LED bulb,

5,LED lamp

We has experienced in product development by our design team, the company has successfully developed various kinds of lights and lighting products, such as APA102 WS2813 SK6812 WS2801, LPD6803, LPD8806, WS2811, WS2812B, TM1809, DMX512 smart led strip and LED module , and 5050 ,3528 ,2835,335,5630 normal led strip etc . are widely used in home decoration, garden landscape, stadiums, exhibition hall, exhibition hall, hotel, high-grade office buildings, upscale clubs etc.. Products are exported to America, Europe, Asia, Oceania, and other market.

What’s The Difference? WS2812 VS WS2813

June 12, 2017/in Blog /by admin

WS2812B VS WS2813

ws2813 led is ws2812 update version,dual-signal wires , signal break-point continuous transmission ,the ws2812b is regular addressable with one data wire, V+&V-.

WS2813 VS WS2812B LED Strip
The image is mainly about the difference between the work principle of WS2812 and WS2813 LED strip. The most obvious difference is: when the led one of the WS2812 was broken, it will affect the other led working, but the WS2813 will not appear above situation.

If you don’t know the WS2812 or WS2813, please allow me to introduce them to you.

Generally speaking, WS2812 has two versions: WS2812 and WS2812B. WS2812B is an upgraded version of WS2812. They are an integrating control circuit and the intelligent external control LED source of the light-emitting circuit, which looks similar to the 5050LED. It internal included intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. They can be applied to the full-color module, full color soft lights a lamp strip, led decorative lighting and the indoor/outdoor led video irregular screen. The features and benefits between WS2812 and WS2812B is the WS2812B has intelligent reverse connect protection and the power supply reverse connection does not damage the IC.

Nowadays it comes to the latest version of the WS2812, which is WS2813
Compare with the former, WS2813 both have some places similar to WS2812, and have its own unique features：

Common:

1) The control circuit and the LED share the only power source.

2) Built-in electric reset circuit and brown-out reset circuit.

3) The color of the light was highly consistent, cost-efficient.

4) WS2813 LED can use same controller as WS2812B LED.

5) When the refresh rate is 30fps, cascade numbers are not less than1024 points.

6) Send data at speeds of 800Kbps and so on.

Difference:

1) WS2812 only one data signal when one led broken may affect the other led working, which only die is package in 5050 RGB LED Chip. But WS2813 led have 2 data signal, any pixel’s failure won’t affect signal transfer and its total emitting effect, unless two consecutive adjacent LED are Broken. WS2813 adopted the upgraded chips led so WS2813 led make digital led project is more reliable than before.

WS2812B

Ws2813

Learn more details please contact us.

How to Connect the ws2813 Led strip?

June 9, 2017/in Blog /by admin

How to Connect the ws2813 Led strip?

ws2813 led is ws2812 update version,dual-signal wires , signal break-point continuous transmission ,the ws2812b is regular addressable with one data wire, V+&V-.

first, get some features about ws2813 led strip.
Adopt international leading manufacturer’s chips high brightness width angle color consistency and stable performance Each lamp beads form a loop can be arbitrarily cut according to the needs of the length of the loop without damaging other parts Convenient to Fix and install flexible cutting operation make the construction simple ultra thin design low temperature light source make the selection for the auxiliary material more flexible on installation Energy saving high brightness low heat low energy consumption Clean and beautiful;Use DC5V to power supply more safe on using Protection Rating IP62 IP65 IP67 IP68 use range is wide Small multi colored no radiation high shock resistance is a new generation of green high tech products.

Some Application
1.City skyline lighting villas advertising wall signs Christmas decorative landscape
2.Irregular design of body decoration shopping malls hotels nightclubs polygonal wall KTV establishments ceiling cavity design
3.Public lighting lighting schools libraries hospitals airports subway stations railway stations
4.Furniture dark groove trim door bar wine cabinet wardrobe TV cabinets etc
5.Automotive beauty body underbody wheelbarrow balanced car etc

Regular, the ws2813 we have 30led&60led&144led per meter. more than 5M/roll will be Voltage Drop.so 5M/roll is the best.

How to Connect the Ws2813led strip?

You can control WS2183 LED strips from the FastLED library.

Use the “WS2812” type and set-up the LED strip by specifying the DATA PIN.

Now connect BOTH centre pins of the strip to this pin and the strip should work.

I’ve been searching for this for ages and finally got my strip to work!

Like wiring

Learn more details please contact us.

What’s The Difference? WS2812 vs SK6812 VS WS2813 vs CS2803 LED Strip

June 8, 2017/in Blog /by admin

The image is mainly about the difference between the work principle of WS2812 and WS2813 LED strip. The most obvious difference is: when the led one of the WS2812 was broken, it will affect the other led working, but the WS2813 will not appear above situation.

Generally speaking, WS2812 has two versions: WS2812 and WS2812B. WS2812B is an upgraded version of WS2812. They are an integrating control circuit and the intelligent external control LED source of the light-emitting circuit, which looks similar to the 5050LED. It internal included intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. They can be applied to the full-color module, full color soft lights a lamp strip, led decorative lighting and the indoor/outdoor led video irregular screen. The features and benefits between WS2812 and WS2812B is the WS2812B has intelligent reverse connect protection and the power supply reverse connection does not damage the IC.

Now WS2813/cs2803 LED come out ,you can think it is ws2812b updated version , WS2813 LED can use same controller as WS2812B LED , WS2813 led have 2 data signal ,so when you use those led chip to make led strip , one led broken will not affect another led unless two consecutive led is broken , so WS2813 led make digital led project is more reliable than before .The capatior and die is packaged in 5050 RGB LED chip , then it will not need another capatior to make led strip again.

But for the cs2803 addressable led strip,the capatior is outside and the die is packaged in 5050 RGB LED chip,and same function with ws2813.and the price will be more reasonable than ws2813 led strip.

WS2812B only one data signal when one led broken may affect another led working . Only die is pacakge in 5050 RGB LED Chip

In summary Compare WS2812B LED chip,

Common:

1) The control circuit and the LED share the only power source.

2) Built-in electric reset circuit and brown-out reset circuit.

3) The color of the light was highly consistent, cost-efficient.

4) WS2813 LED can use same controller as WS2812B LED.

5) When the refresh rate is 30fps, cascade numbers are not less than1024 points.

6) Send data at speeds of 800Kbps and so on.

Difference:

1) WS2812 only one data signal when one led broken may affect the other led working, which only die is package in 5050 RGB LED Chip. But WS2813 led have 2 data signal, any pixel’s failure won’t affect signal transfer and its total emitting effect, unless two consecutive adjacent LED are Broken. WS2813 adopted the upgraded chips led so WS2813 led make digital led project is more reliable than before.

2) Integrated circuit chips enable the circuit control simpler, neater and more reliable without any extra components.

3) 250us or more of reset time, it won’t cause wrong reset while interruption, it work on the lower frequency and inexpensive MCU.

4) Refresh Frequency updates reach to 2 KHz, Low Frame Frequency and no Flicker appear in HD Video Camera, improving excellent display effect.

WS2813 /cs2803 LED have the following advantage:

Any pixel’s failure won’t affect signal transfer and its total emitting effct. Unless two consecutive adjacent LED is Broken l

Integrated capatior and resistance enable the circuit of pcb is more simple ,easy to make .

250us or more of reset time, it won’t cause wrong reset while interruption, it work on the lower frequency and inexpensive MCU. l Refresh Frequency updates reach to 2KHz, Low Fram Frequency and no Flicker appear in HD Video Camera, improving excellent display effect.

Compare with the former, WS2813 both have some places similar to WS2812, and have its own unique features：

Here is their PIN configuration and physical map:

WS2813:

ws2813-led-chip

Here is their PIN configuration and physical map:

ws2812b:

ws2812b addressable led chip

WS2813 Addressable 5V Resume Break Point Led Light Strip

June 5, 2017/in Blog /by admin

WS2813 Addressable 5V Resume Break Point Led Light Strip

Product description
LED lights and components to be assembled so that the thickness of the product only just like Ocuppy a small space and can be arbitrarily cut FPC is soft material can random winding and wound freely movable in three dimensional space without breaking suitable for irregular place and narrow space of places to install but also as any possible bending suitable for advertising decorative lighting any combination of the kinds of patterns LED Chip is built in IC then the components is less pixels can be high can make attractive appearance and so on
IC is designed with double signal two data line two power lines 256 gray scale high brightness fast
data transfer fast screen refresh etc it have the advantage that when one of the pixel broken will not affect another led pixel working with the controller you can achieve monochrome gradient water horse racing text numbers chase English pictures animations video any effection and so on
Products using DC5V voltage to power supply high safety factor using the import led chip to be the light source high brightness light fade is small maintenance free long lifespan energy saving and environmental protection based on the above characteristics More and more peopel choose led strip as lighting decoration product

Product Image

Product Features

Adopt international leading manufacturer’s chips high brightness width angle color consistency and stable performance Each lamp beads form a loop can be arbitrarily cut according to the needs of the length of the loop without damaging other parts Convenient to Fix and install flexible cutting operation make the construction simple ultra thin design low temperature light source make the selection for the auxiliary material more flexible on installation Energy saving
high brightness low heat low energy consumption Clean and beautiful;Use DC5V to power
supply more safe on using Protection Rating IP62 IP65 IP67 IP68 use range is wide Small – multi colored no radiation high shock resistance is a new generation of green high tech products.

Applications
City skyline lighting villas advertising wall signs Christmas decorative landscape
Irregular design of body decoration shopping malls hotels nightclubs polygonal wall KTV
establishments ceiling cavity design)
Public lighting lighting schools libraries hospitals airports subway stations railway stations
Furniture dark groove trim door bar wine cabinet wardrobe TV cabinets etc
Automotive beauty body underbody wheelbarrow balanced car etc.

Project Case

LED Strip dimension

1 meter led strip Specifications

Installation wiring diagram

Learn more please feel free to contact us.

SMD 5050 Ws2815 12v Addressable Individually Rgb Led Chip

June 3, 2017/in Blog /by admin

SMD 5050 Ws2815 12v Addressable Individually Breakpoint Continue Rgb Led Chip

WS2815 -12v- addressable- led -chip -specification

WS2815 is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. Its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, which achieves highly consistent color effect.

The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce 24bit. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.

The BIN receives the data signal, and then compare the data with the DIN side after phagocytosis of 24bit data, if DIN do NOT receive the signal, then switching to BIN for receiving the input signal, which ensure that any the IC’s damage does not affect the signal cascade transmission and make the BIN in state of receiving signal until restart after power-off.

Refresh Frequency updates to 2KHz, Low Frame Frequency and no Flicker appear in HD Video Camera.300us or more of reset time, it won’t cause wrong reset while interruption, it supports the lower frequency and inexpensive MCU.

Pin configuration:

Referrence picture:

Application circuit:

Pin function:

Application:

1,To create the flexible LED dispaly, LED curtain.

2,Indoor & Outdoor decoration, fashion decoration.

3,Guardrail tube series, point light display series, flexible/rigid strips series, module series applications.

4,Lighting stage costumes, innovative gadgets or any other electronic products.

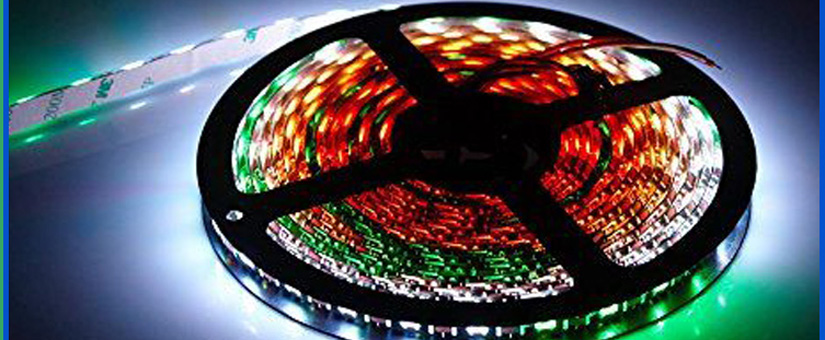

Side view Addressable WS2811 020 RGB LED Strip

June 3, 2017/in Blog /by admin

Introdution ：
The product apply advertising signs、hotel、KTV、computer machine box、
mechanical equipment,car

Product features
1. the use of the best flexibility FPC as a substrate, FPC has good electrical
conductivity, heat fast, resistant to bending, can be bent into any shape
2. using SMD 020RGB lamp beads, external WS2811 driver chip, to achieve
addressable, programmable digital light bar
3. through the controller programming to achieve any of the animation products
4. the use of low-voltage DC5V power supply, the user is more secure when used
5. can be made of waterproof level of diversification, Dijiao waterproof (IP65),
all-inclusive casing waterproof (IP67), casing injection (IP68), as well as the latest
process extrusion (IP68)

Installation mode ：
Back to paste 3M glue, install the attachment customer-owned

Product warranty ：
Warranty two years, non-human factors caused by product quality problems,
warranty replacement.
The Division reserves the right of final interpretation

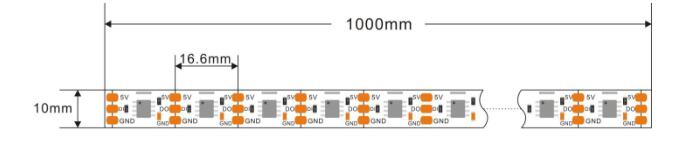

Size：

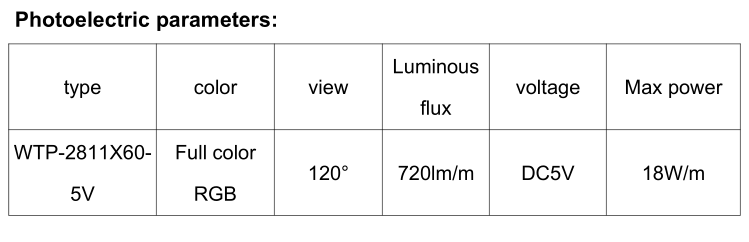

Remarks ： ① test the ambient temperature of 25 ± 2 ℃
② Because of the particularity of the LED manufacturing process, the typical
parameters of the technical parameters only reflect the statistical data, not
necessarily corresponding to the actual parameters of each product, the actual
data of the product may be different from the typical parameters

Precautions ：
1 please read the specifications carefully before using the product
2 the power must be output to DC5V
3 is strictly prohibited live operation
4 prohibit the use of any acidic or alkaline adhesive type of glue and contact
with the goods
5 forced to press the LED surface
6 installation, maintenance, maintenance must be professional operation,
prohibit non-professional operations

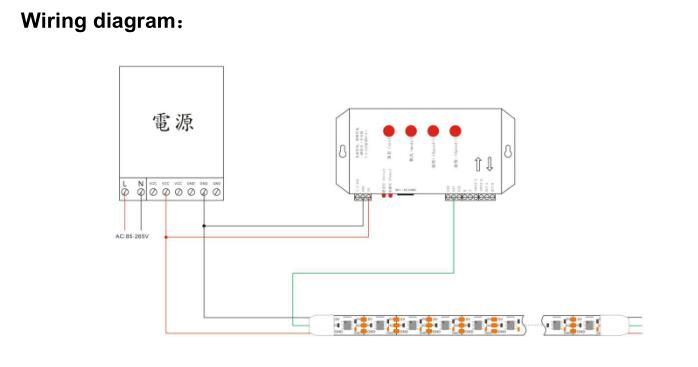

7 before the power to ensure that the cable without error

Learn more please contact us.

Sk6812 Side Smd 4020 Full Color Rgb Led Chip

May 31, 2017/in Blog /by admin

WITOP Built-in driver IC chip, point control LED lamp beads, Full Color SK6812 SIDE 4020 RGB SMD LED

SK6812 – Side-5v- addressable- led -chip -specification

1, Product Overview :

SK6812 SIDE is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 4020 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.

The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.

The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

2, Parameter:
Product name: 4PIN SK6812 SIDE SMD4020 RGB SIDE LED
Input voltage: DC5V
Power:0.2W/PCS
Signal: SK6812 chip
Current:60mAH
View angle:120 degree
Life span:no less than 50000hrs
LUMINOUS:20~22lm 22~24lm
Package include:1000pcs SK6812 SIDE LEDs(1000pcs/roll)(White)

4, Description:

A Top SMD internal integrated high quality external control line serial cascade constant current IC;

B control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;

C built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;

D The built-in power on reset and reset circuit, the power does not work; gray level adjusting circuit (256 level gray scale adjustable);

E red drive special treatment, color balance;

F line data transmission;

G plastic forward strengthening technology, the transmission distance between two points over 10M;

H Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

5, Pin configuration:

6, The data transmission time (TH+TL=1.25µs±600ns):

T0H	0 code, high level time	0.3µs	±0.15µs

T0L	0 code, low level time	0.9µs	±0.15µs

T1H	1 code, high level time	0.6µs	±0.15µs

T1L	1 code, low level time	0.6µs	±0.15µs

Trst	Reset code,low level time	80µs

7,Main Application Field:

1,To create the flexible LED dispaly, LED curtain.

2, Indoor & Outdoor decoration, fashion decoration.

3, Guardrail tube series, point light display series, flexible/rigid strips series, module series applications,LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..

Any question,please contact me by email:Alvin@witop-tech.com

Welcome to Witoptech
