WS2812B RGB Led Ring

WS2812B /Sk6812 RGB Led Ring

/in /by

WS2812B /Sk6812 RGB Led Ring



WS2812B Module use the FR4 (Glass fiber board) to be assembly circuit boards, use SMD LED lights and components to be assembled,

Products using DC5V voltage to power supply high safety factor using the import led chip to be the light source high  brightness light fade is small maintenance free long lifespan energy saving and environmental protection based on the

above characteristics More and more peopel choose led strip as lighting decoration product so that the thickness of the product only just like,LED Chip is built-in IC, then the components is less , pixels can be high,can make

attractive appearance, and so on.

IC is designed with one data line, two power lines, 256 gray scale, high brightness, fast data transfer, fast screen refresh, etc.

As in all WS2812B RGB LED products, all the LEDs on board are individually addressable. Each individual LED carries a 20mA constant-current driver that guarantees consistency of the displayed color under voltage variations. Although we recommend using a 5VDC supply, we’ve successfully tested their operation in the 4~6.5VDC range!

Detail Size



Ws2812B

led ring

Product Show

24Led RGB Led Ring

WS2812B Led Ring

Application

  • Led outdoor or indoor decoration
  • party decoration
  • KTV or night club decoration and so on
  • Bus and  car light
  • Toy for Kids to play
  • Small toy and air plane



we have 1led/8led/16led/24led and 32led. can work with the SD card/remote/bluetooth /online controller.





WS2812B Addressable RGB Led Strip Light

/in /by

WS2812B Addressable RGB Led Strip Light

WS2812B LED strip, which is an addressable RGB LED strip. The information in this post also works with other similar LED strips, such as strips of the WS28XX family, Neopixel strip and others.

In the following figure you can see my WS2812B LED strip. It is 5 meters long and the LEDs are enclosed in a weatherproof silicone. So, they can be left outside at the rain and dust without any problem.

Ws2812B addressable led strip

WS2812B 60led

In my opinion, this is the coolest type of LED strips. You can control the brightness and the color of each LED individually, which allows you to produce amazing and complex effects in a simple way.

This LED strip is made by WS2812B LEDs wired in series. These LEDs have a IC built right into the LED. This allows a communication via a one-wire interface. This means that you can control lots of LEDs using just one digital pin of your Arduino.

In the following figure you can see the chip inside the LED. The LED is an RGB LED and works like so

This kind of strips are very flexible and can be cut to any length you want. As you can see, the strip is divided into segments, and each segment contains one RGB LED

You can adjust its size by cutting the strip with a scissors in the right place (the proper places to cut the strip are marked).

These strips come with  connectors  at each end . I’ve decided to cut the connectors, and solder header pins. It’s more handy if you want to connect the strip to an Arduino or to a breadboard

The LED strip should be powered using a 5V power source. At 5V, each LED draws about 50mA, when set to its full brightness.  This means that for every 30 LEDs, the strip may draw as much as 1.5 A. Make sure you select a power source that matches the strip’s needs.

Connection

If you end up using an external supply, don’t forget to connect the power supply ground to the Arduino ground



In this example, the WS2812B LED strip will be powered using the 5V Arduino pin. In my case, I’m controlling 14 LEDs. Bear in mind that if you want to control many LEDs, you’ll need to use an external power supply.

At present. we have the 30led/60led/144led per meter. also can  do 72/84led, and you can cut your want.of course. if 12V DC. you will Cut by 50MM.

Cutting the strip



TM1814 rgbw

TM1814RGBW Led Strip

/in /by

TM1814RGBW Led strip

Some features

1, TM1814 LED strip, Tube waterproof IP67, white PCB, R/G/B/W 4 color in 1LED.

2, 256 brightness display and 32-bit color display. Three pixel can have its own color and brightness. You can control them  and set them to any color or animation you want.

3, Works great with ready-to-go library & example code for the Arduino UNO/Duemilanove/Diecimila, Flora/Micro/Leonardo, Trinket/Gemma, Arduino Due & Arduino Mega/ADK, FastLED library and Raspberry Pi.

4,Comes with 3pin JST-SM connectors and separated power/ground wires on both ends. Three LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

5,Covered with clear silicone weatherproof sheathing, which protects it very well and makes it easy to clean. It also comes with some silicone clips and screws for easy installation..

product features

1、product type: programmable TM1814 5050SMD 12V RGBW led Strip light

2、Led chip type:5050SMD

3、IC type:TM1814IC inside

4、Led quantity: 60led/m 300led/roll.

5、IC  Quantity:20pcs

6、Voltage:DC12V

7、Power、19.2W/M

8、Emitting  Color:RGBW

9、PCB width:10MM
Compare with the Regular RGB led strip, Some advantages

1、the regular RGB is 3in 1 led, the Ic is ws2811/ws2801/ws2812 or others.

But the RGBW is RGB+W  4in1 led.

2、the W can be warm white or white color.

3、with the Tm1814IC inside 4 channel.

Apply

1,Applicable for automobile and bicycle decoration, border or contour lighting

2,Widely used for home decoration use, hotels, clubs, shopping malls

3,Architectural decorative lighting, boutique atmosphere lighting

4,Extensively applied in Backlighting, concealed lighting, channel letter lighting

5,Emergency & security lighting, advertisement sign lighting

6,Decorative lights for holiday, event, show exhibition

7, support underwater lighting project

Some Picture show

TM1814 rgbW



Why Choose the TM1814RGBW,not the ws2811 addressable led strip ?

1、the TM1814RGBW is 4in1 led strip,the ws2811 is just RGB in one led.

2、the TM1814 and ws2811 are also DC12V, but the TM1814 with Resume break from point Function.

3、The TM1814 RGBW  is RGB+W. the Ws2811RGB is just RGB.

Ra90 2216 Led Strip

2216SMD High CRI Ra90 led Strip

/in /by

2216SMD High CRI  Ra90  led Strip

Description：

This product is suitable for advertising signs, hotels, bars, KTV, nightclubs, bridges and other building facades and home lighting projects.

Features：

1，FPC with the best flexibility as a substrate, FPC has good electrical conductivity, heat fast, resistant to bending, can be bent into any shape

2，Using high display light high efficiency SMD2216 led Chip

3，The brightness of the light bar can be changed by dimming the power supply

4，working on low-voltage DC24V power supply, the user is more secure when used

5，Can be made of waterproof level of diversification, glue cover waterproof (IP65), all-inclusive casing waterproof (IP67), casing injection (IP68)

Ra=90 or Ra=95,Means that the Color reproduction degree.the Regular Led strip the Ra=75 or 80.seldom Led strip is Ra=90,

The 2216SMD is 240led per meter with 24v working Voltage. Suitable for indoor decoration or outdoor decoration. Like bed room and square and so on.

Details

2216SMD Ra90 led strip



ws2818 rgb led strip

Do You Know The WS2818 RGB Flexible LED Strip?

/in /by

Recently,LED Strip lighting is more and more popular.There are many kinds of LED Strip Light.Therefore,I would like to ask do you know the WS2818 RGB flexible LED Strip? Here, let’s learn together.

The characteristic of WS2818 LED Strip

  • Using flexible PCB borad,can be folded into any shape.
  • It is 5 meters long and the LEDs are enclosed in a weatherproof silicone. So, they can be left outside at the rain and dust without any problem.
  • This is the coolest type of LED strips. You can Individual control of each group of LED color and brightness, which allows you to produce amazing and complex effects in a simple way.
  • This kind of strips are very flexible and can be cut to any length you want.You can adjust its size by cutting the strip with a scissors in the right place.These strips come with connectors at each end .
  • The LED strip should be powered using a 12V power source.

The Picture of WS2818 LED Strip

WS2818 breakpoint continue led strip
The advantage of WS2818 LED Strip

  • Signal break-point continuous transmission  .
  • When one of pixel broken,does not affect another led work.
  • With the controller,any flash effect can be achieved.
  • The price is close to WS2811,but has breakpoint continue transmission more than WS2811.

The parameter of WS2818 LED Strip

Product type DC12V Addressable 5050SMD WS2818 RGB LED strip
Led chip type 5050SMD
IC type Ws2818
Led quantity 60led per meter
IC quantity 20pcs/m
voltage DC12V
power 14.4w/m
Emitting color Full color
PCB width 10mm
PCB color white
IP rating IP20 /IP65 /IP67 /IP68

The Application of WS2818 LED Strip


Finally,If you want to know more or want to share ws2818 led strip information,welcome to conatct



ws2818 vs ws2811 ucs1903 digital led strip

What Is The Difference? WS2818 VS WS2811 /USC1903 magic color digital led strip

/in /by

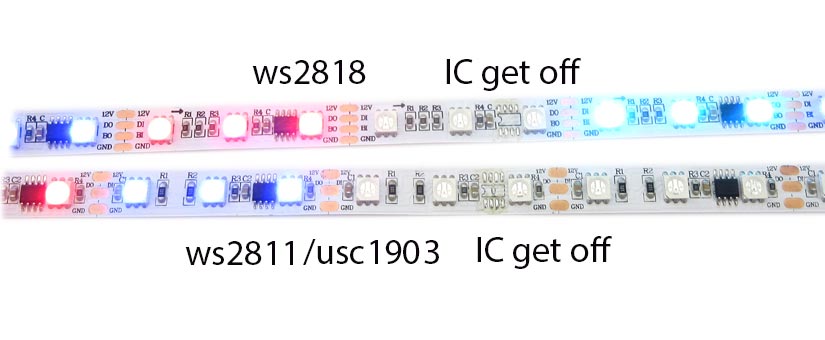

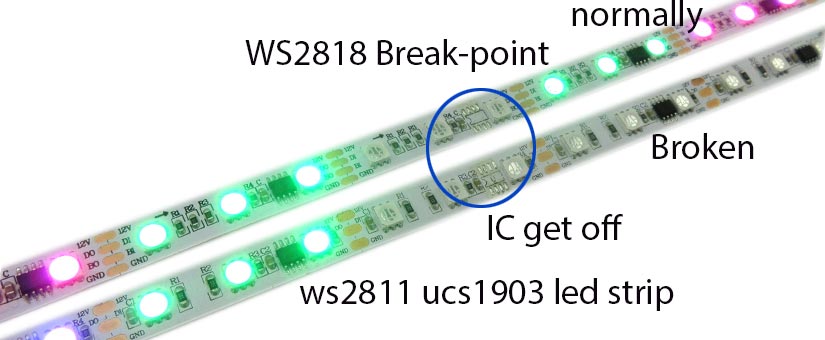

Compare with the ws2818 with ws2811 ucs1903 digital led strip

The image is mainly about the difference between the work principle of WS2818 and WS2811 LED strip. The most obvious difference is: when the IC one of the WS2811/UCS1903 was broken, it will affect the other led working, but the WS2818 will not appear above situation.

ws2818 vs ws2811 ucs1903 rgb digital led strip

The features of ws2818:

1)Break-point transmissoin led strip(same with ws2813),can replace ws2811 ucs1903

2)Programmable full color led strips—WS2818 IC

2)30/60pcs led per one meter

3) individually control ———-1 ic& 3led chip

4)Standard Reel Length: 5meter/roll, also can be customized.

5) Cutted: 3 integrated RGB LEDs per segment, can be cutted per 3LED.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65”/3.33cm(1 LED each), Solder to the 0.1” copper pads and you’re good to go.

6)Power supply: You must use a 12 DC power supply to power this strip, do not use higher than 12V or you can destroy the entire strip

7)4 PIN JST SM connector(non-waterproof)soldered in each end of strip,extra 2single wire for powering in input side

8)Customised length available

Know more about ws2818:

WS2818 is a 3-channel LED driver control circuit, its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, which achieves highly consistent color effect.

WS2818 has strong features in Signal Break-point Continuous Transmission, it adopts dual signal transmission, these signals are able to work together without interaction. The user can select the first chip DIN/BIN as the control signal input pin, and the follow-up cascade chips will automatically identify the output signal released by the first chip which not to affect the whole display effect.

WS2818 adopts Single-line Return-to-Zero communication protocol. After the chip gets power-on reset, the DIN port receive data from controller, the first chip collects initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. The data reduced 24bit after transmitted through every pixel. Since WS2818 adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, but to signal transmission speed. When BIN works as control signal receiving interface, its control data is 24bit more than the DIN interface, so as to ensure that the two ways to control the number of pixels is the same

Based on the received 24bit data, the internal data latch generates different duty cycle control signals in the OUTR, OUTG, OUTB port. All chips synchronous send the received data to each segment when the DIN port input a reset signal. It will receive new data again After the reset signal finished. Before a new reset signal received, the control signal of OUTR, OUTG, OUTB pin unchanged. The chip exports PWM data to OUTR, OUTG, OUTB pins, after receive a low voltage reset signal the time retain over 300us

Web:www.witop-tech.com

020RGB Side emitting Led strip

020rgb side Emitting 60led truck container LED lights

/in /by

020rgb side Emitting  60led  truck container LED lights

Product Description:

1、 LED type: 020RGB side light

2、 color: RGB

3、 working voltage: 12VDC / 24VDC./5VDC

4、 packaging: static bag Product parameters: Size: 5000MM * 10 * 2 (length can be customized) Electricity: Power: 14.4W; voltage: 12VDC / 24VDC./5VDC

Operating temperature: -50 ℃ ~ +70 ℃

Waterproof grade: IP33 \ IP65 \ IP67 \ IP68

Features: pure color, 020 RGBFPC board on the back of 3M glue, easy to install low energy consumption, high brightness , The performance is stable and can do waterproof processing unique line technology and high standards of anti-static, to ensure the life of the light bar and the use of quality with plastic deck, easy to install seismic, maintenance-free normal life of 50,000 hours or more Applications: Decor, pool, disco, bar, karaoke and other atmosphere lighting, fashion lighting

Light strips advantages:

1、with a plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;

2、 with waterproof, in case of high temperature and low temperature does not change color, low voltage long life and other advantages;

3、 with bright colors and soft light (3 LED lights can be composed of a loop — every 3 lights can be cut to use) energy saving and environmental protection and other advantages is the ideal replacement of neon products (than the neon energy saving 70%), , It is decorative contours. Making a variety of modeling the ideal lighting.

Picture Show

020RGB Side emitting Led strip

Electronic products to ensure that there will not be after-sales quality disputes, please have qualified qualified manufacturers.

  1. LED lamp bead detection technology National leading: independent patent testing equipment in 3 minutes can be measured lamp light failure, color, life and other important electrical parameters, the machine dead light rate of less than one hundred thousandth, finished lamps Anti-static up to 20KV, the factory solemn commitment to light bar warranty for 2 years.
  2. Reduce more costs for customers: managers before the technical-based electronic components traders, the use of components without intermediate links, both genuine and inexpensive.
  3. Waterproof to achieve the highest IP68 level: independent waterproof patented technology. Outdoor products in the hottest Hainan Sanya, the coldest Shenyang, the factory’s fish tank all-weather two years to run, there is no water phenomenon.
  4. ISO9001 / 2 management model: to ensure that each product 100% qualified factory.
  5. Service-oriented: by the number of electrical professional technicians composed of the installation of the steering group, at any time to listen to customers dispatch. The products have been sold to the United States, Britain, Italy, India, Russia, Iran, Nigeria, Israel and other countries and regions. The company through the CCC certification, CE certification, ROHS recognition, PCC, ISO9001, SGS, UL certification and other domestic and international related industry certification.

Products used in urban night lighting project, architectural decoration, square landscape, fountain, advertising decoration, hotels and other decorative landscaping lighting

020RGB Side emitting Led strip

, All need to touch the LED lamp beads of the operator must wear a real effective anti-static bracelet. 2, LED pin if there is a need for bending, the break point from the LED colloid must be more than 3mm; 3, LED welding is required to 260 ℃ normal temperature of 3 ℃, welding time shall not exceed 2 seconds, if it is over tin furnace , The temperature of the tin furnace is below 275 ℃, the time of immersion tin shall not exceed 2 seconds, requiring the operator to act very skillfully and precisely. 4, LED wave soldering when asked to wave soldering machine to the real grounding. When the ground line, absolutely can not be connected to the city grid above the ground, must be connected with the city power grid ground completely separated from a real ground. This ground wire requires the lead wire to penetrate directly into the depth of the ground below 5 meters. Note: Many users do not notice this, which led to the wave soldering machine electrostatic breakdown of the LED chip directly, resulting in LED lamp beads leakage and light or dead lights. 5, all contact with the material or equipment must be connected to the real ground. 6, the detection of lamp beads and the lamp beads inserted into the PCB on the process, must be very cautious, must be done triple protection: the first heavy, the operator must wear a real effective anti-static ring. Second, the work desk must be covered with anti-static rubber. Third, the front of the operator must be equipped with an ion fan (except for static fan) to eliminate static electricity. 7, LED light board production Before the power test, be sure to determine the light board circuit is not even tin tin short circuit, if short circuit, will be damaged or serious damage to the LED lamp beads, or immediately emerged, or to a few Day or longer to show up, resulting in a hidden hidden dangers, so be sure to carefully check the circuit situation, which in many users who have appeared many times, this particular special attention!



ws2813 flexible led strip

Ws2813 Addressable Break-point RGB LED Strip

/in /by

This post is about the WS2813 LED strip, which is an addressable and breakpoint continue RGB LED strip. The information in this post also works with other similar LED strips, such as strips of the WS28XX family, Neopixel strip and others.

Introducing the WS2813 LED Strip

The WS2813 addressable LED strip comes in several varieties that differ in size, sealant or LED density. Choose the one that best fits your purposes.

Where to buy?

You can buy one here on WITOP.

In the following figure you can see my WS2813 LED strip. It is 5 meters long and the LEDs are enclosed in a weatherproof silicone. So, they can be left outside at the rain and dust without any problem.

In my opinion, this is the coolest type of LED strips. You can control the brightness and the color of each LED individually, which allows you to produce amazing and complex effects in a simple way.

This LED strip is made by WS2813 LEDs wired in series. These LEDs have a IC built right into the LED. This allows a communication via a one-wire interface. This means that you can control lots of LEDs using just one digital pin of your Arduino.

In the following figure you can see the chip inside the LED. The LED is an RGB LED and works like so.

ws2813 led strip
This kind of strips are very flexible and can be cut to any length you want. As you can see, the strip is divided into segments, and each segment contains one RGB LED.
You can adjust its size by cutting the strip with a scissors in the right place (the proper places to cut the strip are marked).
These strips come with connectors at each end . I’ve decided to cut the connectors, and solder header pins. It’s more handy if you want to connect the strip to an Arduino or to a breadboard.

Powering the WS2813 LED Strip

The LED strip should be powered using a 5V power source. At 5V, each LED draws about 50mA, when set to its full brightness. This means that for every 30 LEDs, the strip may draw as much as 1.5 A. Make sure you select a power source that matches the strip’s needs.

ws2813 led chip like this:

ws2813 rgb led chip



If you end up using an external supply, don’t forget to connect the power supply ground to the Arduino ground.

Ws2812B Led panel light

Ws2812B/sk6812 8X8/16×16 Led panel light

/in /by

Ws2812B/sk6812  8X8/16×16 Led panel light

ws2812B 8X8 led panel light

LED Quantity: 64

IC Type WS2812 (IC Built in LED)

Wattage: 19.2W

Pixel/m: 8*8

PCB Width: 9*9cm

Length of cable: 100mm

Working Voltage: DC 5V

PCB Color: black

Features.

  1. Control IC SK6812/ws2812b  inserted in 5050 RGB LED diode , supporting numerous color-change effects .
  2. White PCB and black PCB optional .
  3. It comes in one piece separated by a 3Pin JST SM connector and extra Power /Ground Wires .
  4. Flexible PCB material . This matrix has a thick flexible PCB backing that can

be gently bent and curved around surfaces

  1. This matrix with 256 leds, you could use over 15A of current if you turn on all the LEDs on to white (which we really do not recommend because we don’t think the flex PCB can handle that much current in a long time ). Try to keep the current draw at under 5A.

These are awesome 8×8 individually addressable RGB matrix panels. Composed of 8 columns x 8 rows of WS2812B (WS2812/WS211 protocol) individually addressable LEDs on a flexible PCB, these panels have 64 LEDs and they can be daisy-chained to make bigger signs or panels! You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that, thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.

These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 3.8A in most uses (3.8A if all LEDs are set to bright white, which is NOT recommended). Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND.

Pls note that WS2812B are a bit different than the standard WS2801 ICs, these do not use separate clock and data lines.

Some Picture Show

ws2812b led panel light (1)

Learn more please contact Us



DC24V RGBW 60led led strip

24V RGBW Led Strip

/in /by

24V RGBW Led strip

The 24v RGBW LED strip light provides the ultimate control of colors; while having access to red, green and blue, you can also have the choice of either warm white or natural white. A genuine white light is generated with the use of RGBW strip. This is ideal for use with interior design, if a room is lit by warm white lights and the RGBW channel is desired to match the rest of the color temperature, this isn’t a problem at all – it can be decorative as well as practical.

Sold in a 5 meter roll, the rgbw LED strip lights can be easily cut to length to fulfill the exact desired length required. Unfortunately, the RGBW LED strip light is only available in IP20; this means it is suitable for use anywhere that is dry and where it won’t come into contact with any water whatsoever. For example, for use in a kitchen or bathroom, there would be concern that the strip light could come into contact with water so due to the IP rating of this trip channel, it unfortunately wouldn’t be able to be placed in a kitchen or bathroom.

5050 SMD Epistar high lumen LED’s are used on these particular strip lights. The high quality LED’s are 50% brighter than most LED’s used on conventional strips and have a very low depreciation time. Combined with the fact that the strip channel is 24 Volts, the RGB 5050 LED Strip lights are able to shine brighter for longer.

Need white and RGB color changing light from one strip, no problem
Our RGBW LED Strip is ideal to use when a color changing light and white light is required in one location from one LED strip. Previously to achieve the same lighting effect, two separate LED strips would need to be used. Our RGBW LED Controllers can control both the white and color changing light LED’s together.

Integrated RGBW LED is twice as bright
Unlike most RGBW LED Strips, ours features a unique LED Chip. Each LED on the strip has an integrated design with a dedicated white light portion and color changing portion. Previously separate LED’s had to be used on the LED strip, alternating between white and RGB LED’s. The benefit with our RGBW strip is the RGB output is twice as bright while still providing a good strong dedicated white light. The color and white light mixing is also improved.
24V RGBW LED Strip is Beneficial for Larger Installations
It can be beneficial to use 24V LED strip for installations of more than 5 meters of LED strip per zone. Using 24V instead of 12V LED Strip the capacity of the color controller is doubled allowing twice as much strip to be powered through the color controller. Also 24V RGBW LED strip allows up to 10m to be connected in series with the control gear compared to just 5m for 12V strip.

24V RGBW Led Chip Show

24V RGBW Led Strip

We also have 12V /24V RGBW Led Strip without IC inside. if Full  color, it is addressable and with sk6812 ic Inside. learn more please contact us.
